REMAGRIP CK-X, REMAGRIP CP-X Ceramic Lagging
For Pulleys Subject to High Stress.

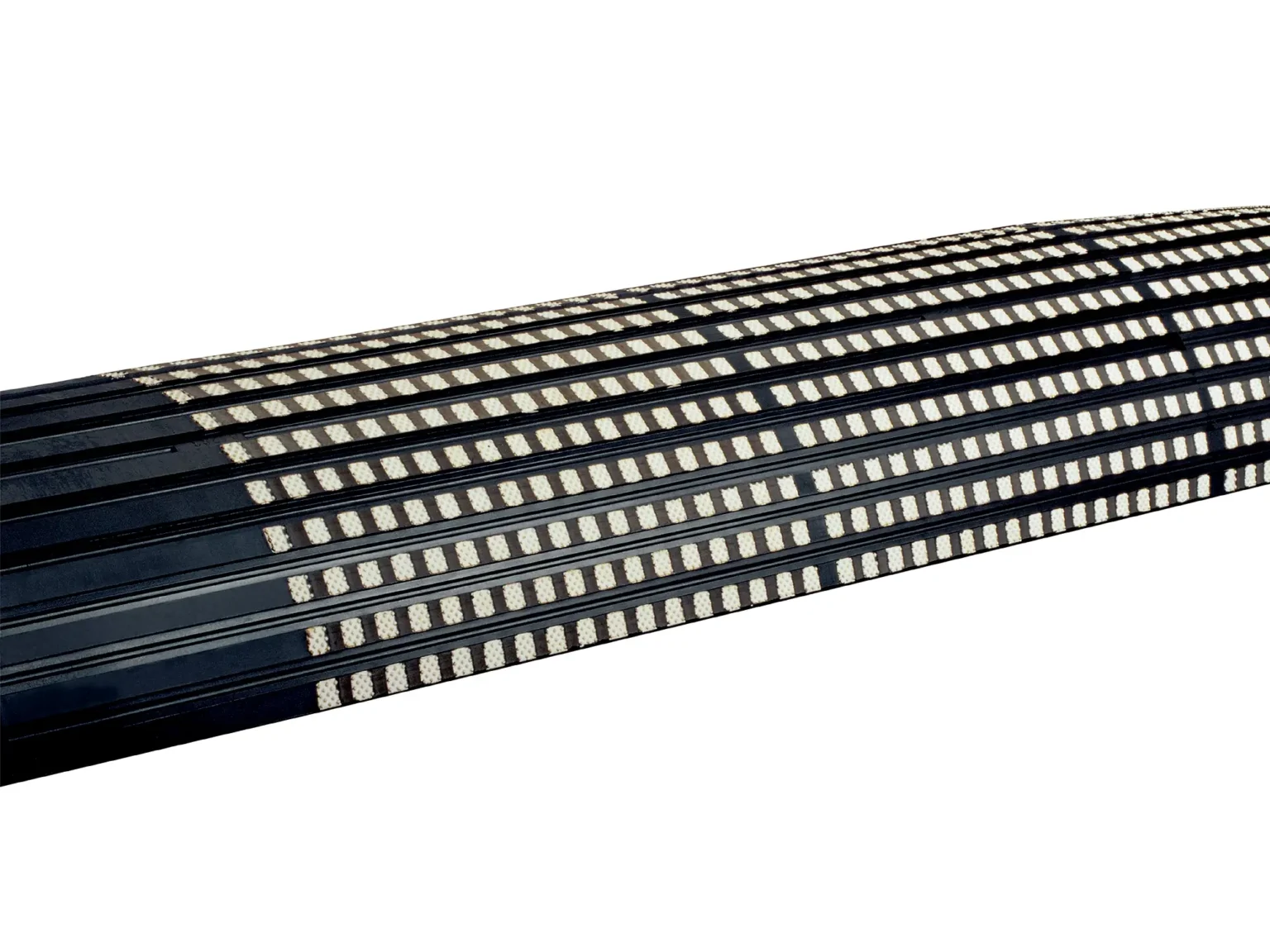

REMAGRIP CK-X Ceramic Lagging
The profiled surface of the ceramic tiles provides optimum grip on pulleys subject to high stress.
3/4″ square, 8mm thick alumina oxide ceramic tiles with small diamond pattern “nubs” molded in abrasion resistant rubber separated by grooves for shedding water. Exceptional bonding strength between the rubber and the ceramic tiles due to their geometrical design on the bonding side of the tile which enables a three dimensional integration of the ceramic tiles into the rubber matrix.
Characteristics and advantages of REMAGRIP CK-X and CP-X:
- Provides significantly higher traction than traditional rubber laggings
- High reliability even in wet, clay and muddy operating conditions
- High resistance to wear (service life up to 10 times longer than that of traditional rubber laggings)
- Dynamic resistance optimized by arrangement of ceramic tiles based on FEM calculations
- Unique three-dimensional embedding of the ceramic tiles in the rubber substrate
- High self-cleaning effect due to grooves between the rows of ceramic tiles
- More flexible than traditional rubber/ceramic pulley lagging, therefore even small diameter pulleys can be lagged easily
- Protection of the belt through elastic rubber base (optimum adaptation of the ceramic tiles to the conveyor belt surface)
- Durable adhesion if bonded with the outstanding REMA TIP TOP bonding systems
Properties:
- Vulcanised Al2O3 ceramic tiles
- Single-row ceramic, with knobs
- Highly resistant to wear
- Elastic base made of REMALINE 70 or REMALINE 70 V protects the belt
- Simple and durable affixing with REMA TIP TOP bonding systems
Area of Application:

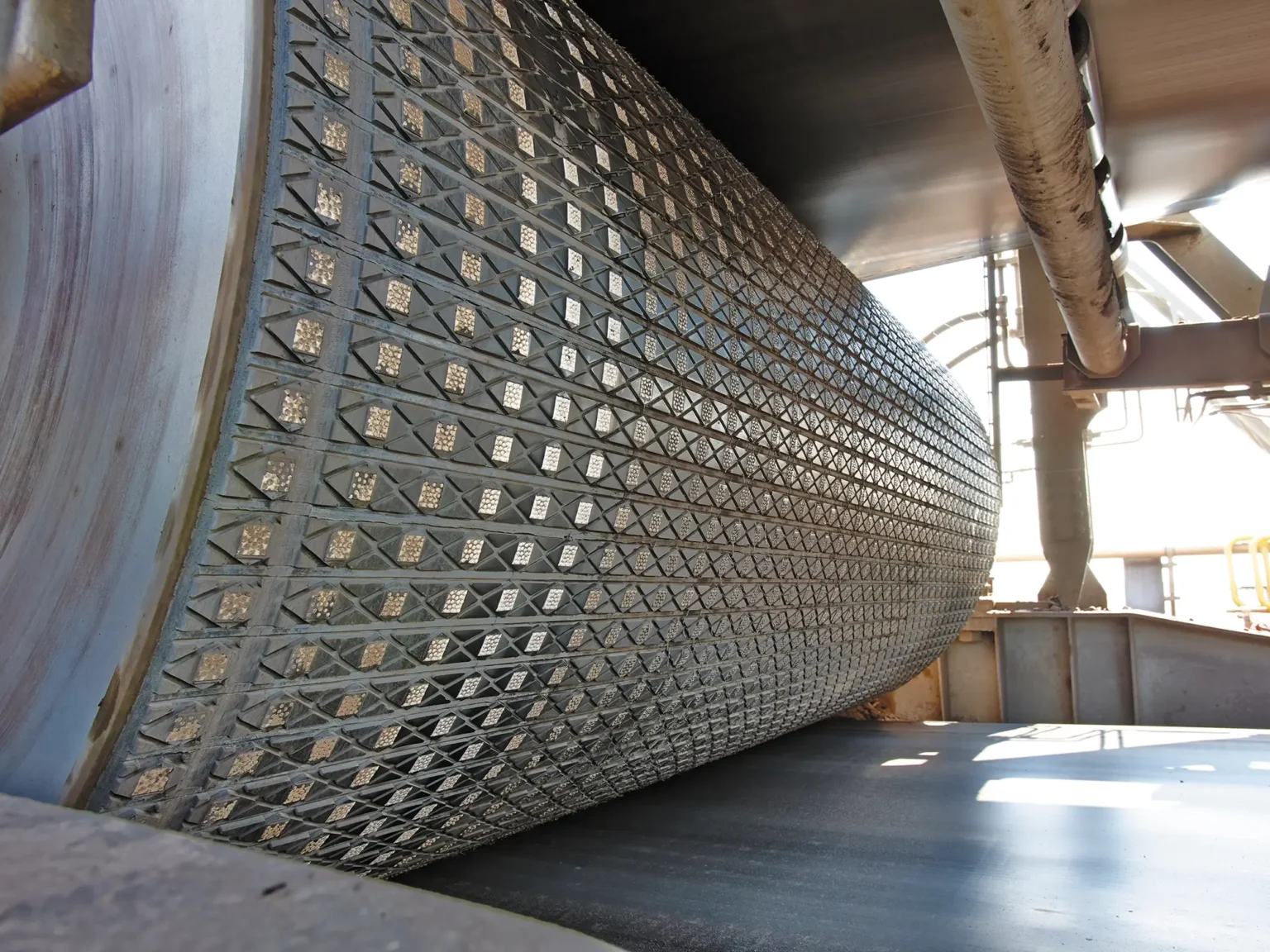

- Pulley lagging for pulleys operating under extreme conditions
- For wet, clay-containing, muddy and abrasive materials
- Also for belts under very high tension
- Especially suitable for drive pulleys subjected to extreme wear (CK-X)

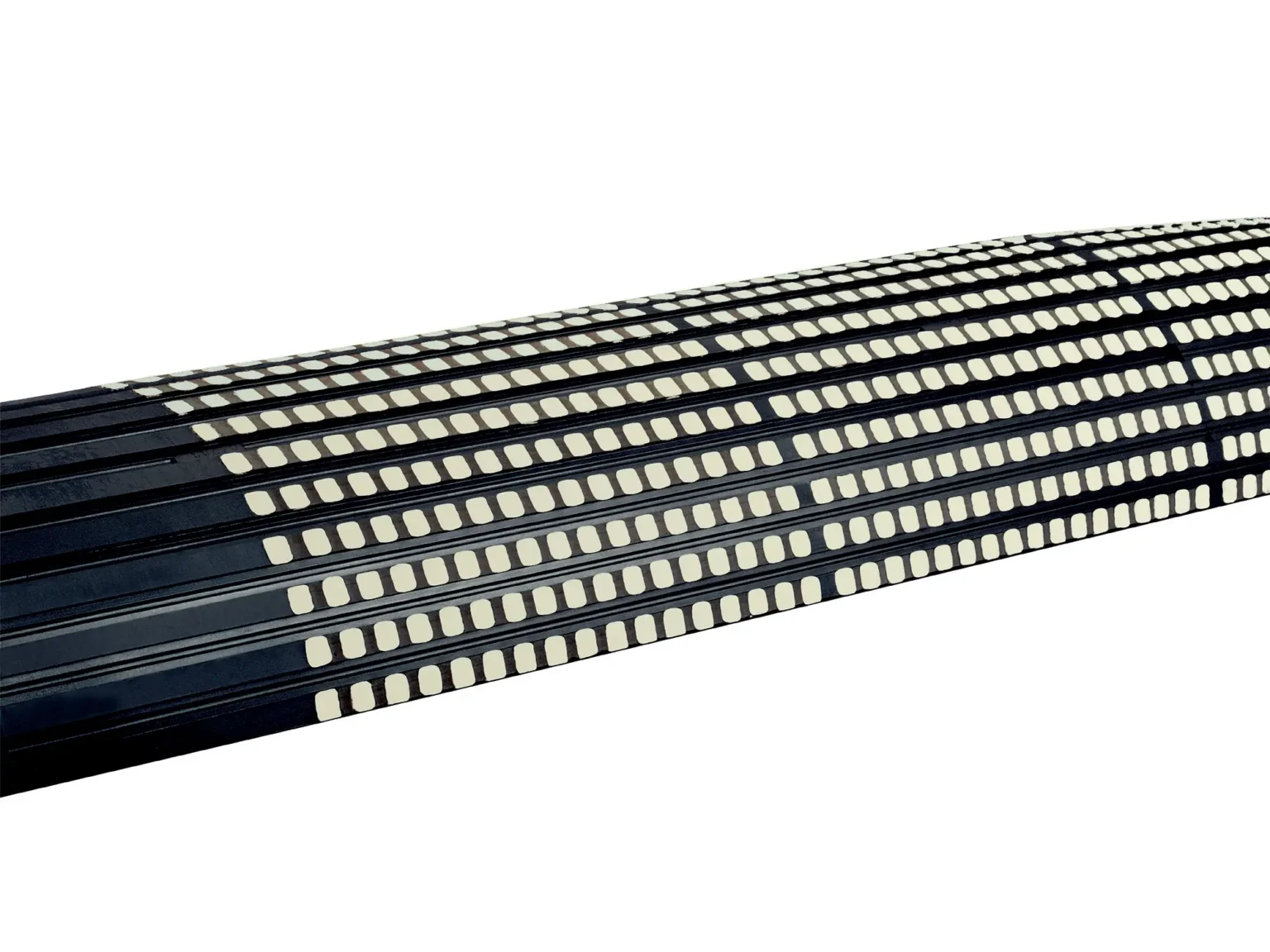

REMAGRIP CP-X Smooth Ceramic Lagging
The plain surface of the ceramic tiles is highly efficient, particularly on non-drive pulleys (ranging from tail pulleys to snub pulleys), which are subject to high wear.
Characteristics and advantages of REMAGRIP CK-X and CP-X:
- Provides significantly higher traction than traditional rubber laggings
- High reliability even in wet, clay and muddy operating conditions
- High resistance to wear (service life up to 10 times longer than that of traditional rubber laggings)
- Dynamic resistance optimized by arrangement of ceramic tiles based on FEM calculations
- Unique three-dimensional embedding of the ceramic tiles in the rubber substrate
- High self-cleaning effect due to grooves between the rows of ceramic tiles
- More flexible than traditional rubber/ceramic pulley lagging, therefore even small diameter pulleys can be lagged easily
- Protection of the belt through elastic rubber base (optimum adaptation of the ceramic tiles to the conveyor belt surface)
- Durable adhesion if bonded with the outstanding REMA TIP TOP bonding systems
Properties:
- Vulcanised alumina oxide (Al2O3) ceramic tiles
- Single-row ceramic, plain
- Highly resistant to wear
- Elastic base protects the belt
- Simple and durable affixing with REMA TIP TOP bonding systems
Area of Application:
- Pulley lagging for pulleys operating under extreme conditions
- For wet, clay-containing, muddy and abrasive materials
- Also for very high belt tensions
- For tail pulleys subjected to extreme wear
- For non-powered drums
