Belt Cleaners
REMA TIP TOP belt cleaners deliver reliable carryback removal and consistent cleaning efficiency across diverse conveyor applications. Designed to reduce buildup, improve housekeeping, and protect system components, they help maintain cleaner, safer, and more efficient material-handling operations.
Belt Cleaners
REMA TIP TOP’s Belt Cleaners range includes T-Bar primary scrapers, CAB Green and CAB Grey secondary cleaners, and a high-performance rotary cleaning brush. Engineered for effective carryback control, these cleaners minimize spillage, prevent material buildup, and extend conveyor belt and component life. Suitable for mining, aggregates, and general bulk-handling, they improve operational efficiency and reduce maintenance demands.
REMACLEAN KWA T-Bar Scrapers
The REMACLEAN KWA T-Bar is a high performance, belt friendly cleaning system that has been developed to offer outstanding cleaning performance at an economical price. It incorporates three abrasion resistant rubber scraping strips all in one bar. The bar can be rotated to a new rubber scraper after wear occurs. Fast scraper installations using a choice of tensioning units. Replacing the rubber scraper bar is also fast and easy.
Areas of Application
- For conveyor belt widths from 24″ through 60″
- Works well with both hot vulcanized splices and metal clips
- For belt speeds up to 490 f.p.m.
- Do not use on reversing belts
Product Features
- Three scraping surfaces available by rotating the T-Bar
- Quick scraper bar change-out
- Long service life due to abrasion resistant rubber scraping bar
- Excellent price to performance ratio
- Two different tensioning units available
REMACLEAN - CAB Green
REMACLEAN Green Combination Scraper Rubber is a three-ply combi scraping rubber (CAB) with wear resistant outer layer and elastic inner layer. The combi scraper rubber may protrude from its support up to 1.5 times its thickness. This combination provides excellent conveyor belt cleaning and can utilize existing scraper devices (“V” plows, angled plows, etc.) already mounted on the system.
Typical Applications:
- Combination scraper rubber for granular, slightly sticky and moist material
Product Description
- Consists of three layers of rubber, two hard rubber outer layers surrounding a soft inner core.
- This combination provides excellent conveyor belt cleaning and can utilize existing scraper devices mounted on the system.
- The dual rubber design provides the best cleaning and abrasion resistance available.
- It routinely outperforms urethane and other rubber compounds for service life and cleaning ability.
- Harder outer layers provide a scraping/cleaning effect, while the softer inner layer bulges out under compression and provides a wiping/cleaning action.
Product Overview
- Scraper rubber may protrude from its support up to
- 1.5 times its thickness
- Excellent wear resistance
- Very belt friendly
- low friction on conveyor belt
- Production widths up to 78″ wide
- Designed for temperature ranges of -40°F to 158°F
- Can be used with V plows and angled plows
- More forgiving to your belt fasteners and vulcanized splices than Urethane scrapers
Specifications:
- Color: Black / Green / Black
- Hardness: 70 / 54 / 70 Shore A +/- 5
- Elastomer: NR/BR (all layers)
- Resilience: 47 / 75 / 47%
REMACLEAN - CAB Grey
REMACLEAN Grey Combination Scraper Rubber is a three-ply combi scraping rubber (CAB) with wear resistant outer layer and elastic inner layer. The combi scraper rubber may protrude from its support up to 1.5 times its thickness. This combination provides excellent conveyor belt cleaning and can utilize existing scraper devices (“V” plows, angled plows, etc.) already mounted on the system.
Typical Applications:
- Combination scraper rubber for granular, slightly sticky and moist material
Product Description
- Consists of three layers of rubber, two hard rubber outer layers surrounding a soft inner core.
- This combination provides excellent conveyor belt cleaning and can utilize existing scraper devices mounted on the system.
- The dual rubber design provides the best cleaning and abrasion resistance available.
- It routinely outperforms urethane and other rubber compounds for service life and cleaning ability.
- Harder outer layers provide a scraping/cleaning effect, while the softer inner layer bulges out under compression and provides a wiping/cleaning action.
Product Overview
- Scraper rubber may protrude from its support up to
- 1.5 times its thickness
- Excellent wear resistance
- Very belt friendly
- low friction on conveyor belt
- Production widths up to 78″ wide
- Designed for temperature ranges of -40°F to 158°F
- Can be used with V plows and angled plows
- More forgiving to your belt fasteners and vulcanized splices than Urethane scrapers
Specifications:
- Color: Black / Grey / Black
- Hardness: 82 / 50 / 82 Shore A +/- 5
- Elastomer: BR/IR/NR outside / NR inner layer
- Resilience: 47 / 75 / 47%

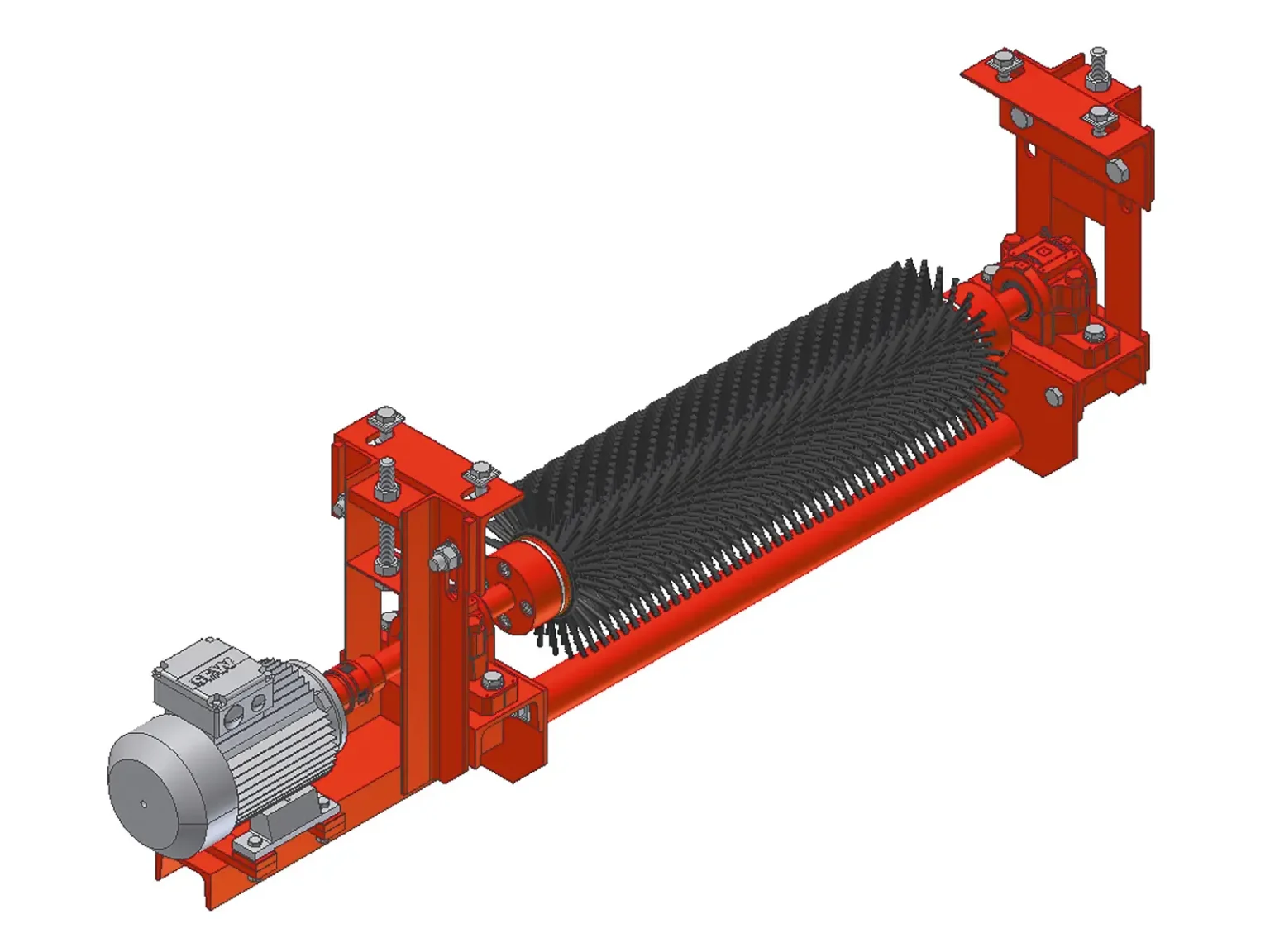

REMACLEAN - Cleaning Brush
REMACLEAN GRB Belt Cleaning Brushes (Non Stock / Special Order)
A cleaning brush assembly driven by an electric motor that rotates in the opposite direction of belt travel. Ideal for removing fine or powdery material that becomes stuck to conveyor belting.
Product Overview
- Belt cleaning brush with direct drive from electric motor
- Ideal for cleaning of fine, powdery and sticky materials
- Ideal in combination with a primary belt cleaning system, especially with wet materials
- High flexibility of the rubber bristles ensure belt friendly cleaning Self-cleaning
- Special versions available for cleated belts and contact with food
Typical Applications
- Belts with vulcanized or mechanical splices operating at speeds up to 500 fpm
- Applications with fine, powdery and sticky materials
- Cleated belts
