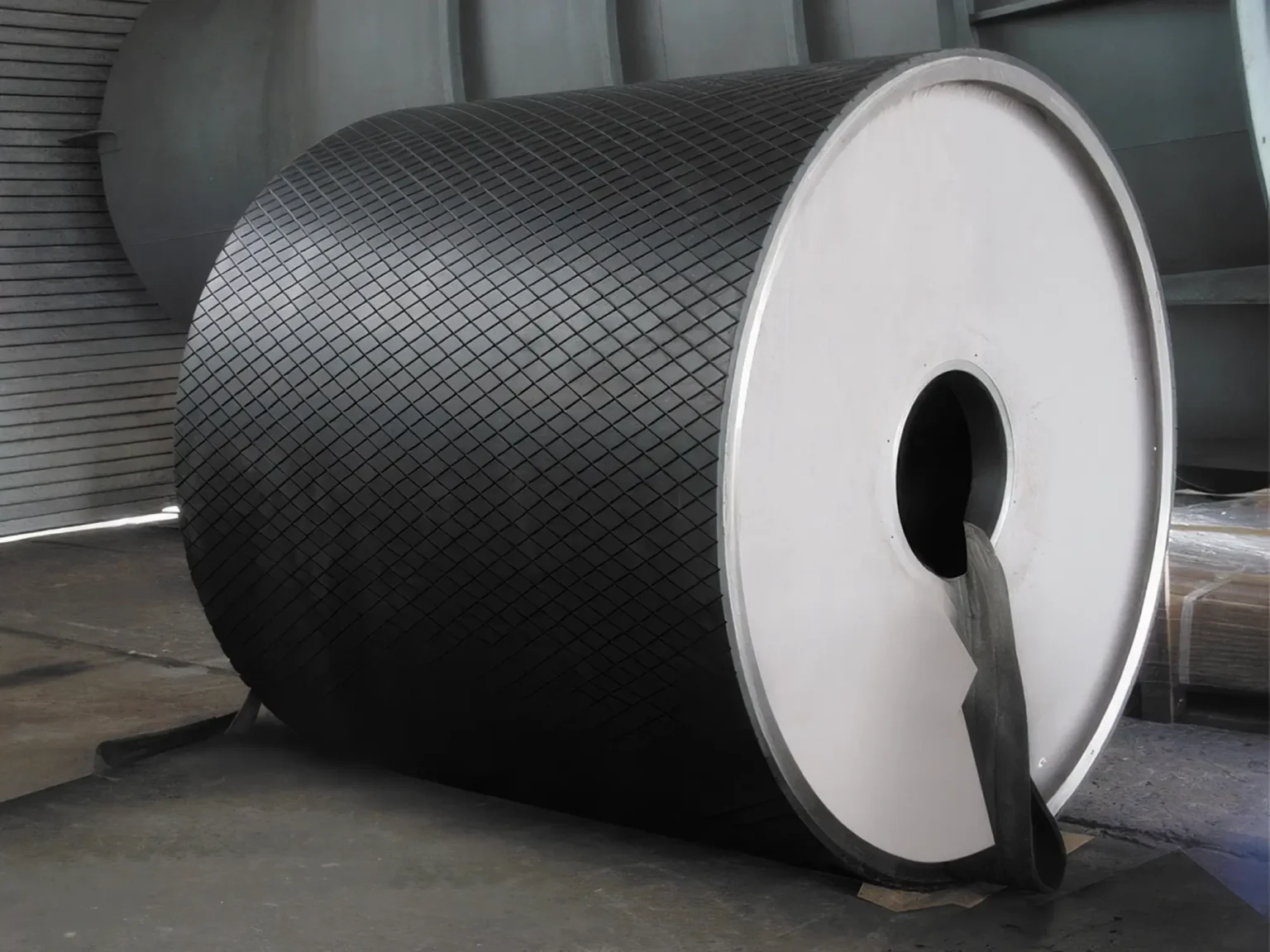

REMAGRIP Diamond Lagging

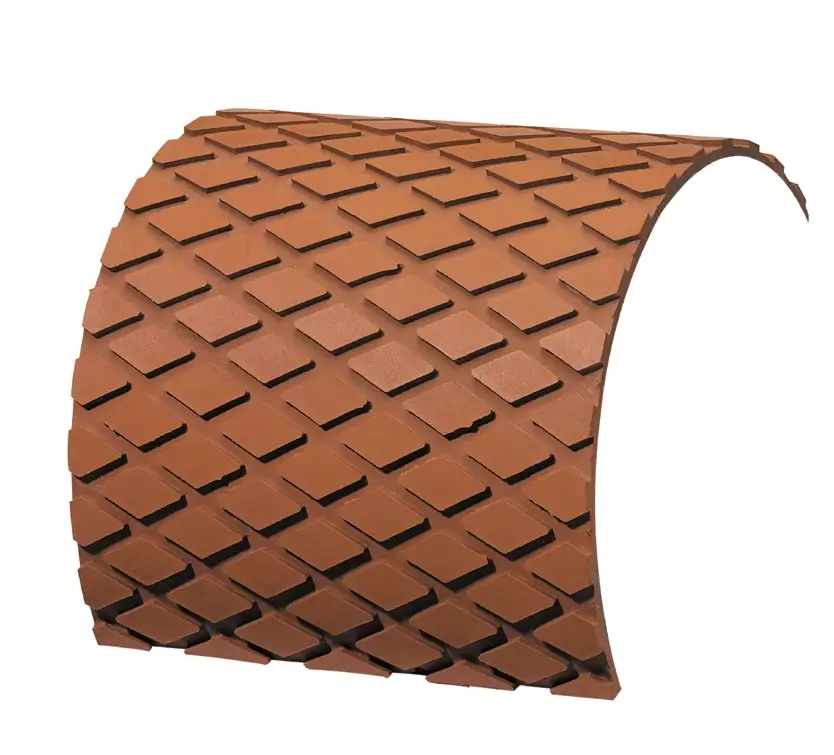

REMAGRIP 50/CN

A medium soft natural rubber compound for pulley lagging on fabric conveyor belts under light to medium duty operating conditions.

Typical Applications:
Diamond pattern pulley lagging for driven pulleys up to 30″ diameter. Designed for short belt conveying systems.

Properties:

  • Color: Orange
  • Resilience: 73%
  • Hardness: 50 Shore A +/- 5
  • Elastomer: NR
  • Profile: 1″ small diamond

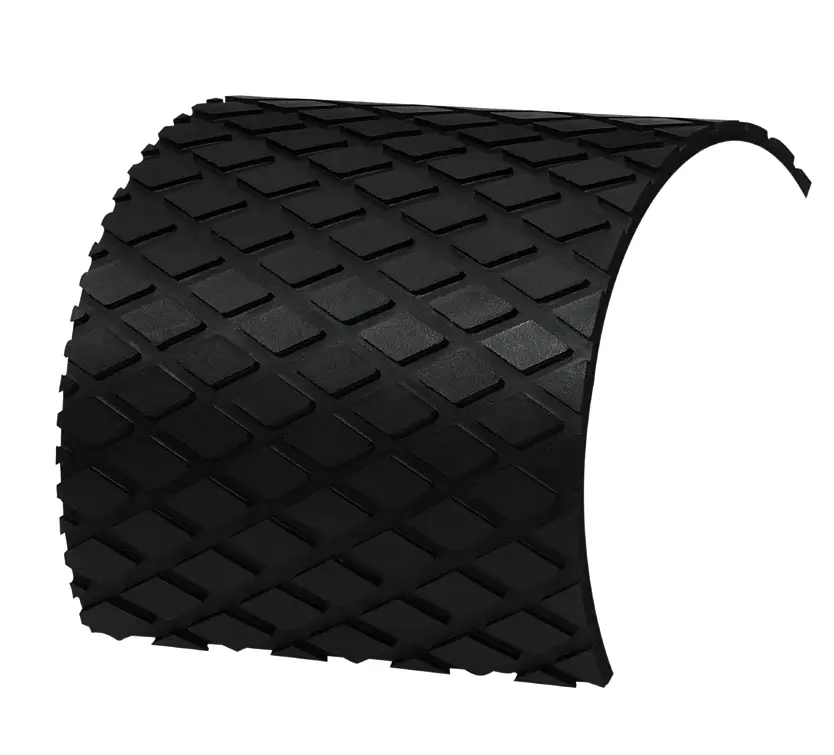

REMAGRIP 60

A Styrene, Butadiene and Isoprene rubber compound with good abrasion resistance for pulley lagging on fabric conveyor belts under light to medium duty operating conditions.

Typical Applications:
Diamond pattern pulley lagging for driven pulleys up to 30″ diameter.

Properties:

  • Color: Black
  • Resilience: 47%
  • Hardness: 63 Shore A +/- 5
  • Elastomer: IR/BR/SBR
  • Profile: 1″ small diamond

REMAGRIP 70 "V" Quality

MSHA Approval #MSHA IC-205/1

A Chloroprene rubber compound with good abrasion resistance that is self-extinguishing and approved for underground mine use.

Typical Applications:
Diamond pattern pulley lagging for drive pulleys. Specifically designed for underground use and coal applications.

Properties:

  • Color: Black
  • Resilience: 27%
  • Hardness: 62 Shore A +/- 5
  • Elastomer: CR
  • Profile: 2″ large diamond

REMAGRIP 70 - MSHA Strip Lagging

A Chloroprene rubber compound with good abrasion resistance that is self-extinguishing and approved for underground mine use.

Typical Applications:
Diamond pattern pulley lagging for drive pulleys. Specifically designed for underground use and coal applications.

Properties:

  • Color: Black
  • Resilience: 27%
  • Hardness: 62 Shore A +/- 5
  • Elastomer: CR
  • Profile: 2″ large diamond
