UNIGRIP Ceramic Pulley Lagging
UNIGRIP Ceramic Pulley Lagging Material is a specially-designed lagging with ceramic tiles for wet and muddy conditions where belt slippage occurs. It comes equipped with a bonding layer, which provides extremely high adhesion when used in combination with the REMA TIP TOP adhesive systems.
UNIGRIP CR-L
With good performance in wet, muddy or dry conditions, UNIGRIP CR-L provides an effective solution to solve your conveyor drive problems and enhance production efficiency of the entire system.
Typical Field of Use
- Pulleys operating under extreme conditions
- Especially suitable for wet and muddy conditions where belt slippage occurs, also for belts running under very high tension
Advantages
- Eliminates belt slippage
- Vulcanized Al2O3 ceramic tiles
- UNIGRIP CR-L 215: 22% ceramic tiles coverage
- UNIGRIP CR-L 385: 45% ceramic tiles coverage
- Unique design of ceramic tiles with the raised “knob” that increases friction between conveyor belts and pulleys
- Improves the system stability
- Increased belt and pulley service life
- Belt tension can be reduced, which means lower energy consumption, lower wear of entire system and lower cost per ton

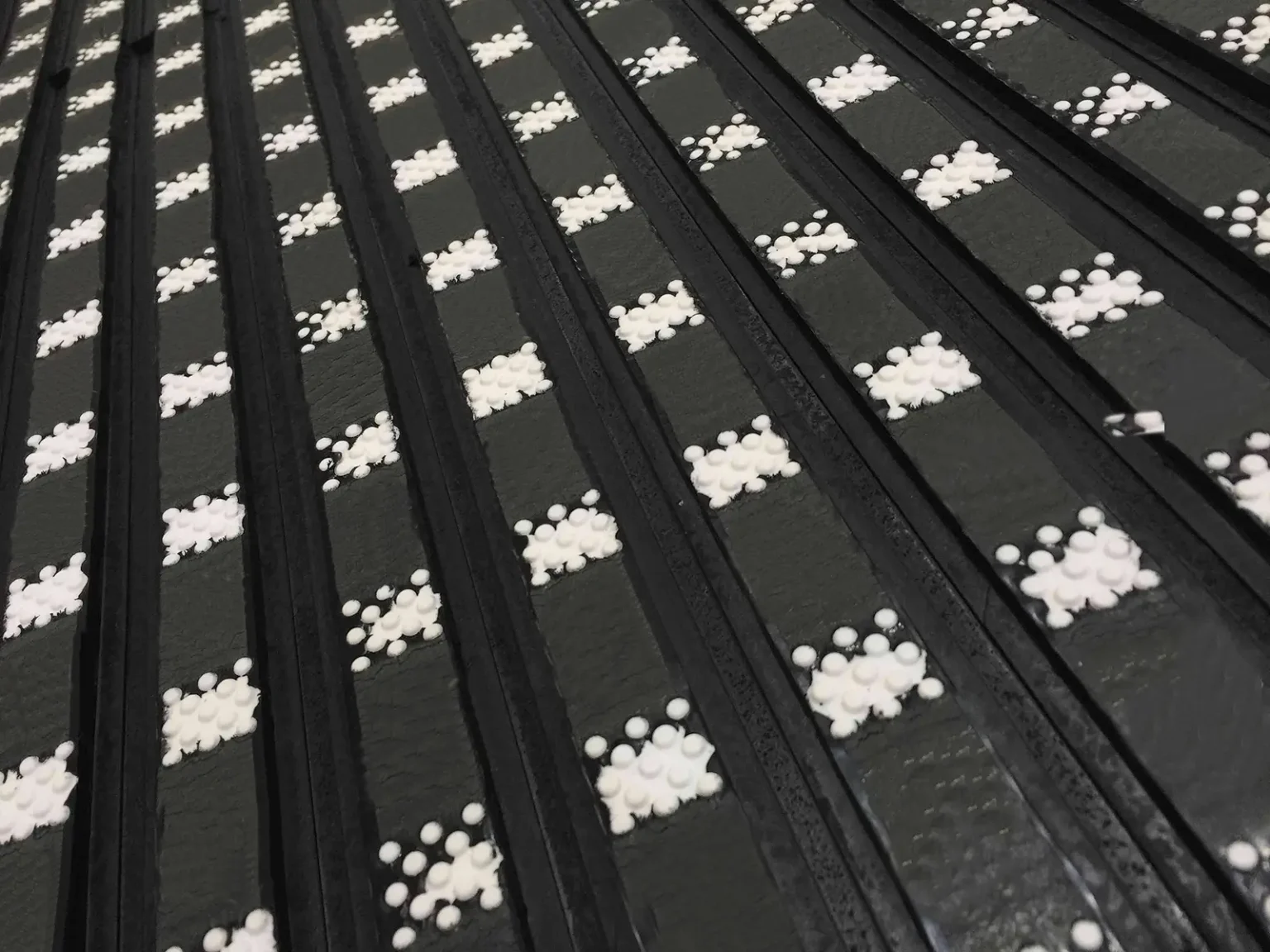

UNIGRIP CR-L 215
Standard Ceramic Pulley Lagging Material

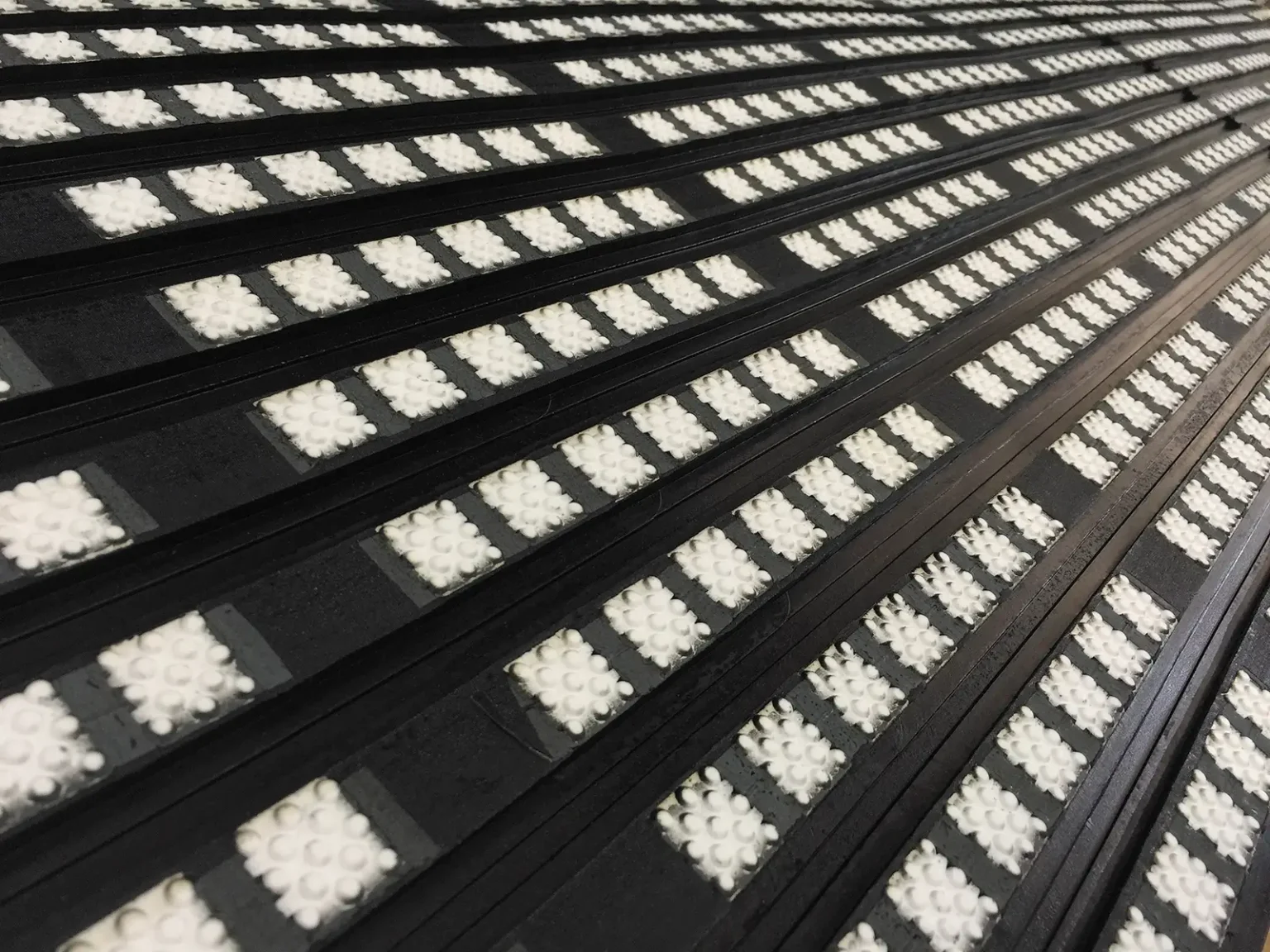

UNIGRIP CR-L 385
Standard Ceramic Pulley Lagging Material
TECHNICAL PROPERTIES
COMPOUND
| Color | Black | |
| Polymer | IR/BR | DIN ISO 1629 |
| Hardness | 62 Shore A | DIN ISO 7619-1 |
| Abrasion | 150 mm³ | DIN ISO 4649 |
| Density | 1.12 g/cm³ (69.92 lb/ft³) | DIN EN ISO 1183-1 |
| Tensile Strength | 20 N/mm² (2900 psi) | DIN 53 504 |
| Elongation at break | 400% | DIN 53 504 |
| Resilience | 35% | DIN 53 512 |
CERAMIC
| Content of aluminium oxide | 92% | |
| Ceramic hardness | 87 HRA | |
| Open porosity | 0% | DIN EN 60 672 0 |
| E-Module | 300 GPa | DIN EN 60 672 0 |
| Density | 3.65 g/cm³ | DIN EN 60 672 0 |
