REMALINE Rubber Linings

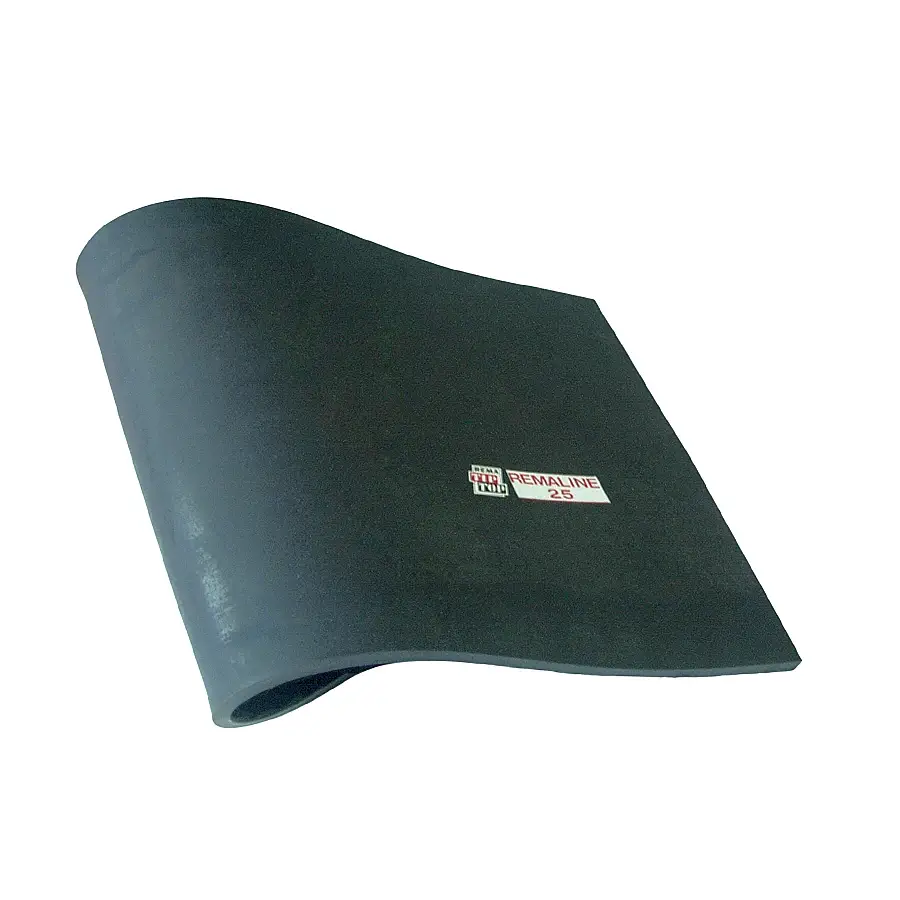

REMALINE 25

(Non Stock / Special Order)

A highly elastic and very soft natural rubber compound.

Typical Applications:
Idler sleeves, discharge boots for dry mortar, flexilo linings.

Specifications:

  • Color: Black
  • Elongation: 800%
  • Hardness: 33 Shore A +/- 5
  • Elastomer: NR/IR
  • Resilience: 75%
  • Tensile: 2175 psi

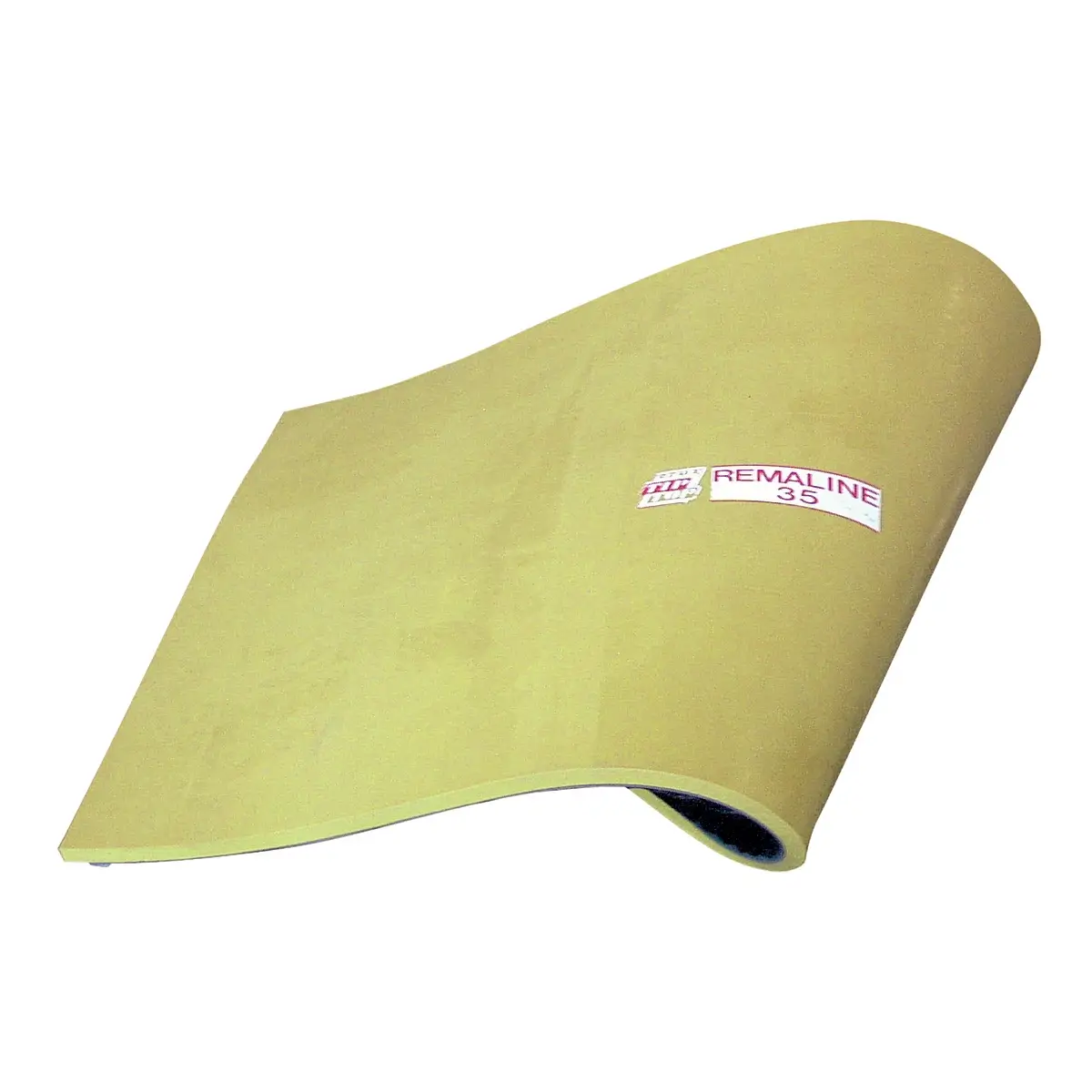

REMALINE 35

A highly elastic natural rubber compound with excellent resistance to wet abrasion.

Typical Applications:
Pipe linings, pumps, cyclones, discharge boots for ready-mix concrete plants. Tank and chute linings for sticky materials such as mud and clay.

Specifications:

  • Color: Gold
  • Elongation: 750%
  • Hardness: 34 Shore A +/- 5
  • Elastomer: NR
  • Resilience: 78%
  • Tensile: 2030 psi

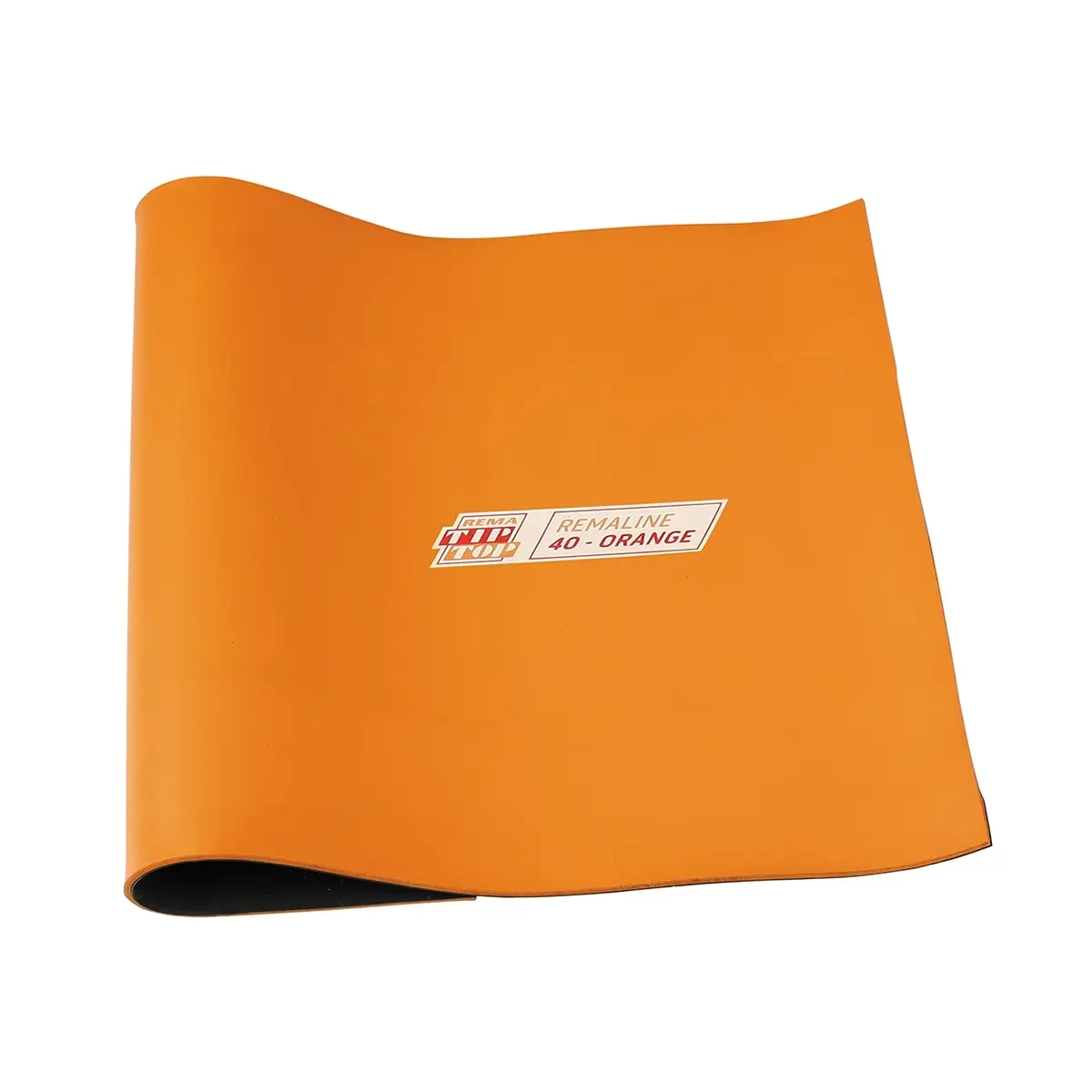

REMALINE 40 Orange

A natural rubber compound with high tensile strength and tear growth resistance.

Typical Applications:
Pipe linings, launders, pumps, cyclones, discharge boots, flotation cells, non-driven pulleys. Suitable for cut and impact wear in wet and dry applications.

Specifications:

  • Color: Orange
  • Elongation: 640%
  • Hardness: 40 Shore A +/- 5
  • Elastomer: NR
  • Resilience: 75%
  • Tensile: 3190 psi

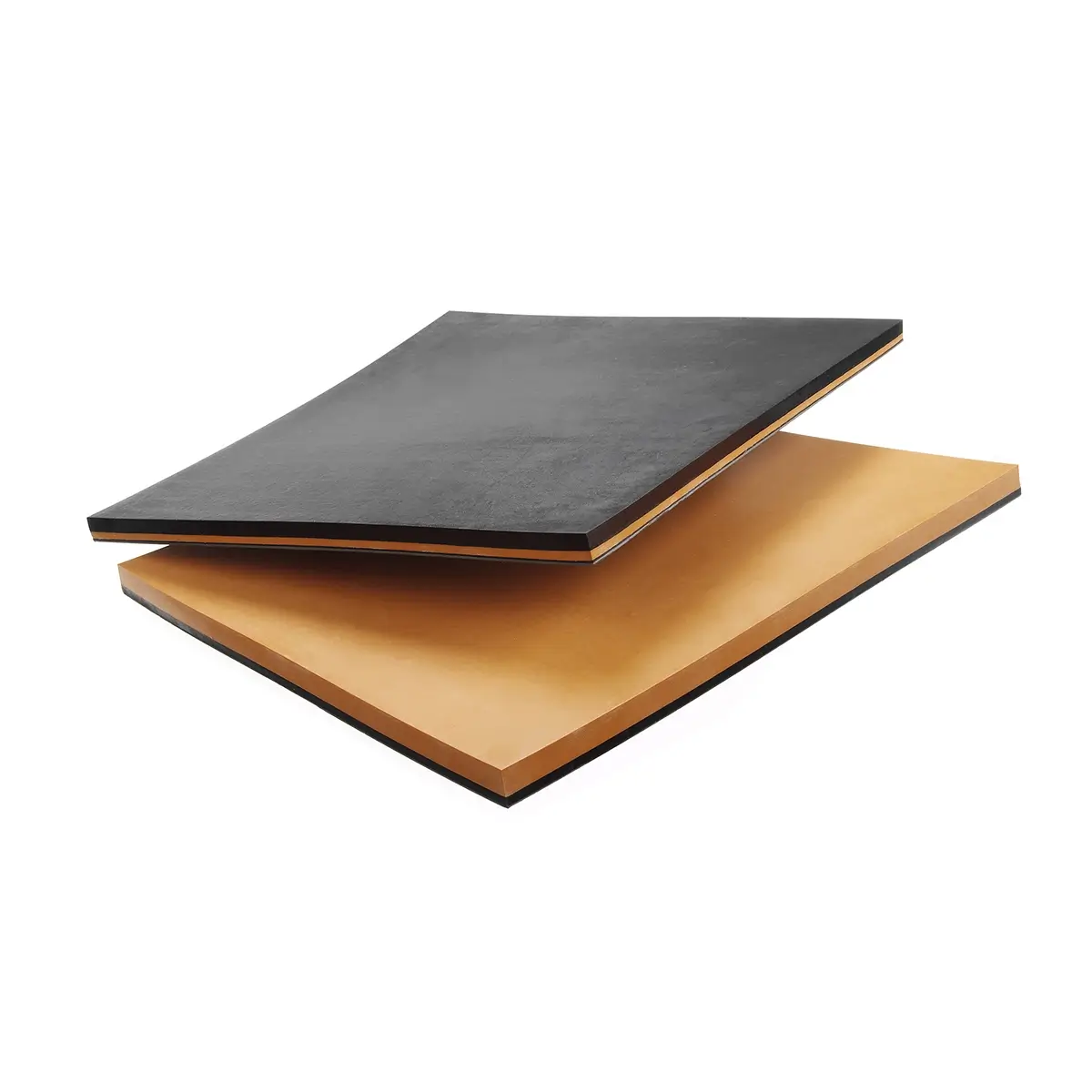

REMALINE 40 Maintenance Pro

(Non Stock / Special Order)

A natural rubber compound with high tensile strength and a wear indicator built into the sheet.

Typical Applications:
The same applications as REMALINE 40 with the added benefit of the wear indicator layer to signal when it is time to replace the lining material.

Specifications:

  • Color: Orange wear layer / black indicator layer
  • Elongation: 640%
  • Hardness: 40/42 Shore A +/- 5
  • Elastomer: NR
  • Resilience: 75%
  • Tensile: 3190 / 3625 psi

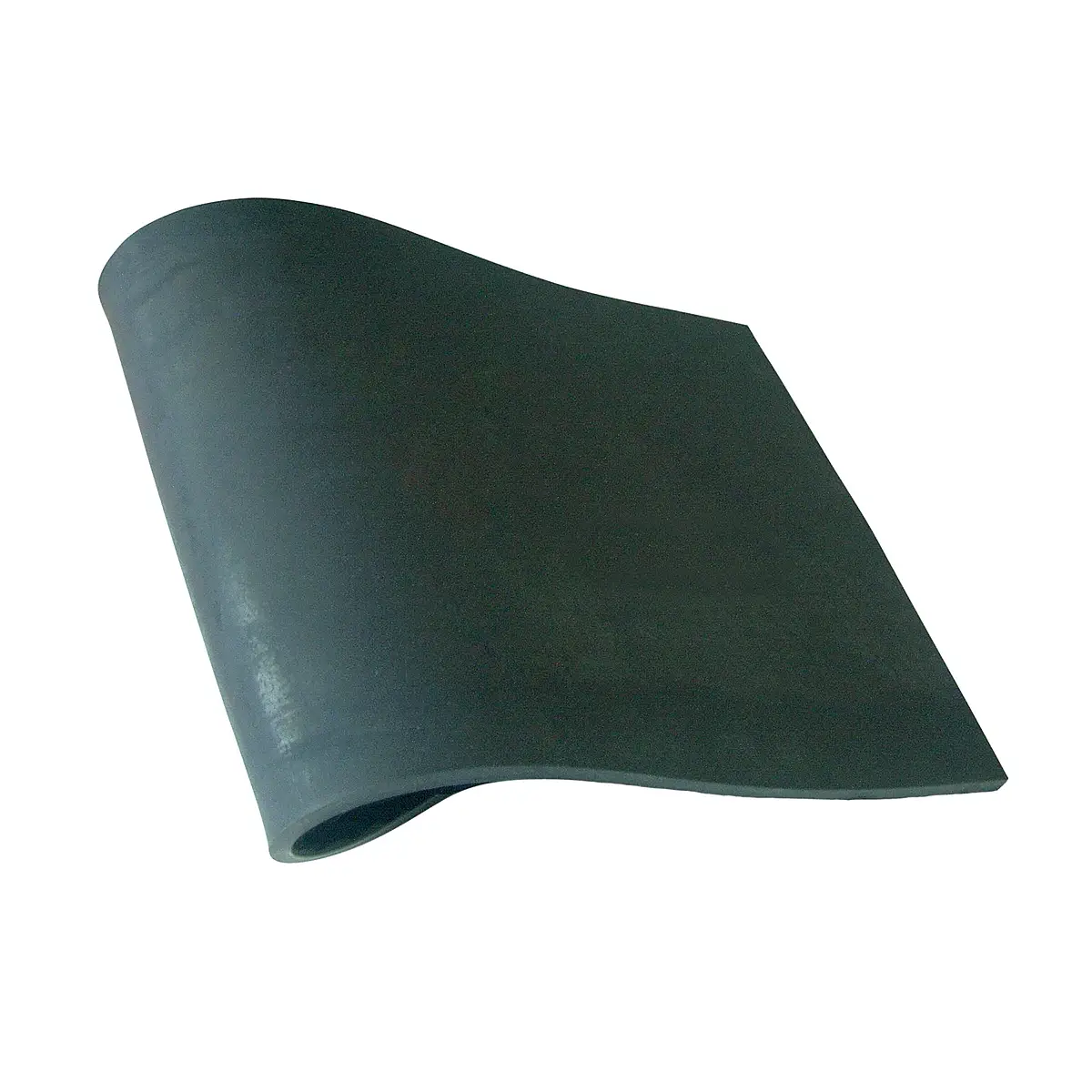

REMALINE 40 Oil Resistant

(Non Stock / Special Order)

A medium soft nitrile rubber compound resistant against most industrial oils used in the mining and processing industry.

Typical Applications:
Chute and tank linings in mining and processing plants where oil resistance is required. Suitable for both wet and dry applications.

Specifications:

  • Elongation: 670%
  • Hardness: 46 Shore A +/- 5
  • Elastomer: NBR
  • Resilience: 40%
  • Tensile: 2030 psi

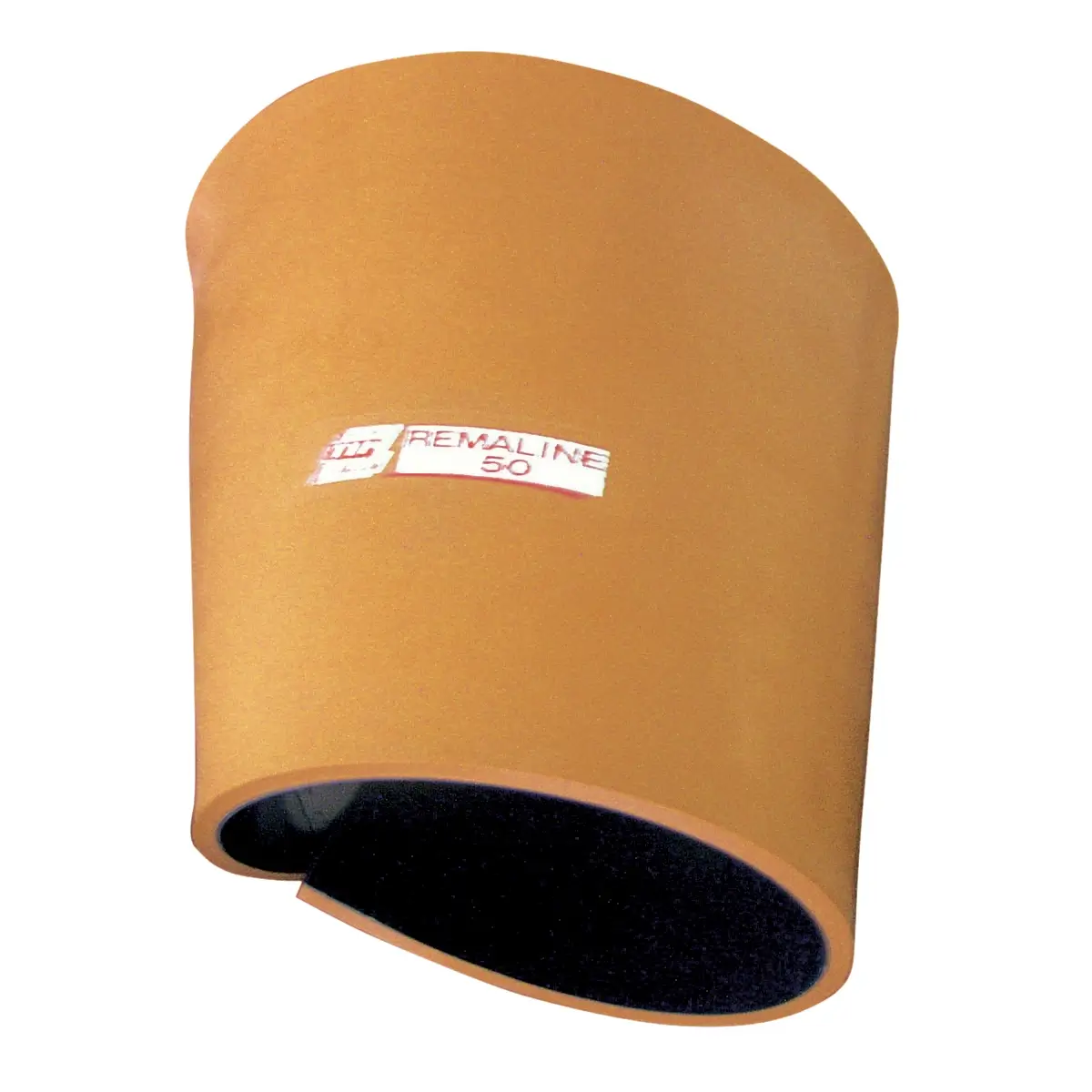

REMALINE 50

A natural rubber compound that is highly tear resistant and offers excellent protection in wet and dry abrasive applications.

Typical Applications:
Pipe linings, chute and tank linings, non-driven pulleys. Suitable for cut and impact wear in wet and dry applications.

Specifications:

  • Color: Orange
  • Elongation: 660%
  • Hardness: 50 Shore A +/- 5
  • Elastomer: NR
  • Resilience: 73%
  • Tensile: 4206 psi

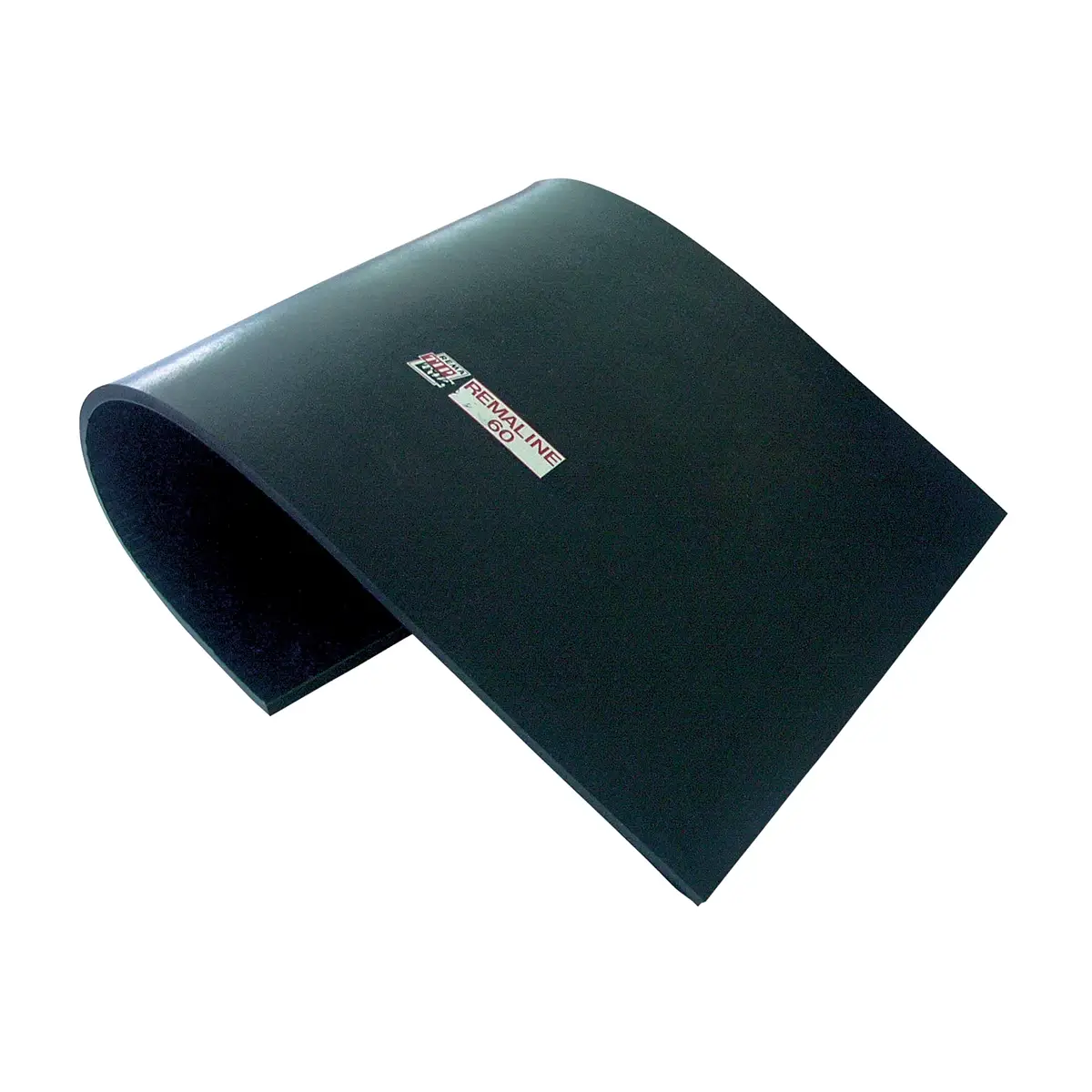

REMALINE 60

A Styrene, Butadiene and Isoprene rubber compound with good dry wear resistance and impact resistance.

Typical Applications:
Vibratory feeders, surge bins, impact curtains, discharge chutes, non-driven pulleys. Suitable for dry wear resistance that also requires resistance to sharp ore and stone.

Specifications:

  • Elongation: 440%
  • Hardness: 60 Shore A +/- 5
  • Elastomer: IR/BR/SBR
  • Resilience: 45%
  • Tensile: 2465 psi

REMALINE 70 "V" Quality

MSHA Approval #MSHA IC 205/1

A Chloroprene rubber compound with good abrasion resistance this is self-extinguishing and approved for underground mining use.

Typical Applications:
Chute lining, non-driven pulleys and idler covering. Specifically designed for underground use and coal applications.

Specifications:

  • Color: Black
  • Elongation: 370%
  • Hardness: 65 Shore A +/- 5
  • Elastomer: CR
  • Resilience: 27%
  • Tensile: 2610 psi
