RG 7000 - Conveyor Belting / Rubber Repair Material Kit
REMA RG 7000 is a urethane based rubber repair product with a fast set time and 1 hour functional cure, reducing the amount of time required to make the repair.
REMA TIP TOP RG 7000 is a versatile, fast drying rubber repair material
- Highly flexible with strong adhesions to prevent failures
- Doesn’t gum up or melt during buffing at low speeds
- Made in USA
Key Advantages
- Durable, long lasting belt repair
- Functional cure in 1 hour
- Primer has open working window after flash-off, up to 4 hours
- Apply to vertical or horizontal surfaces
- Moderate oil & solvent resistance
- Fast set time makes installation on incline and vertical surfaces easy
- Can be used with belt scrapers
- May add uncoated breaker fabric in damage area for reinforcement, if desired
- Can be installed over metal fasteners with PR 200
- Available in 2 sizes; 300g kit & 750g kit
Can Be Applied To:
- SBR Belt, Urethane Belt, PVC Belt
- Sheet Metal
- Wood
- MOR Belt
- Grain Belt
- EPDM (most manufacturers)
- MSHA Belt
- RMV Belt
- REMALINE Natural Rubber Skirting

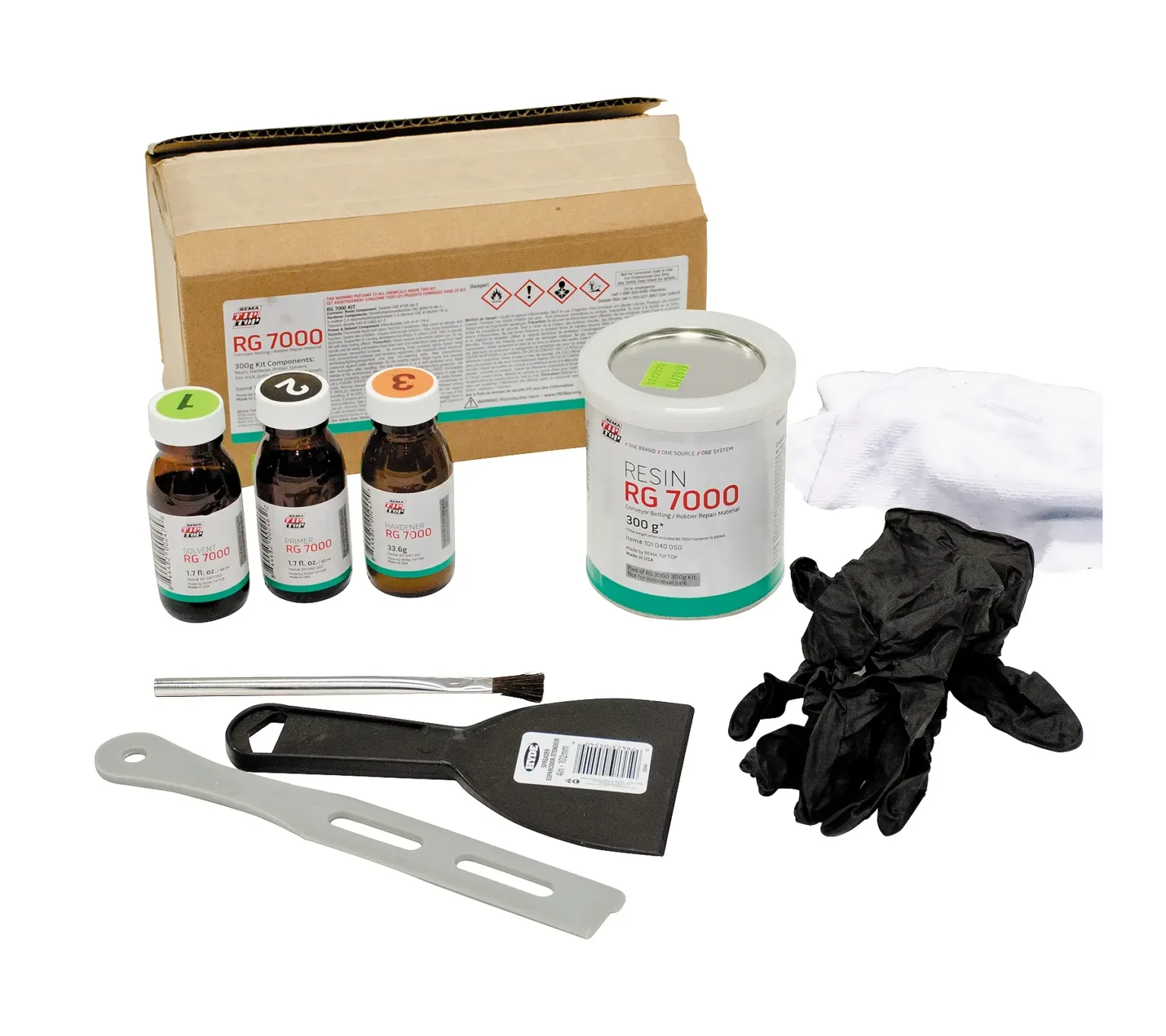

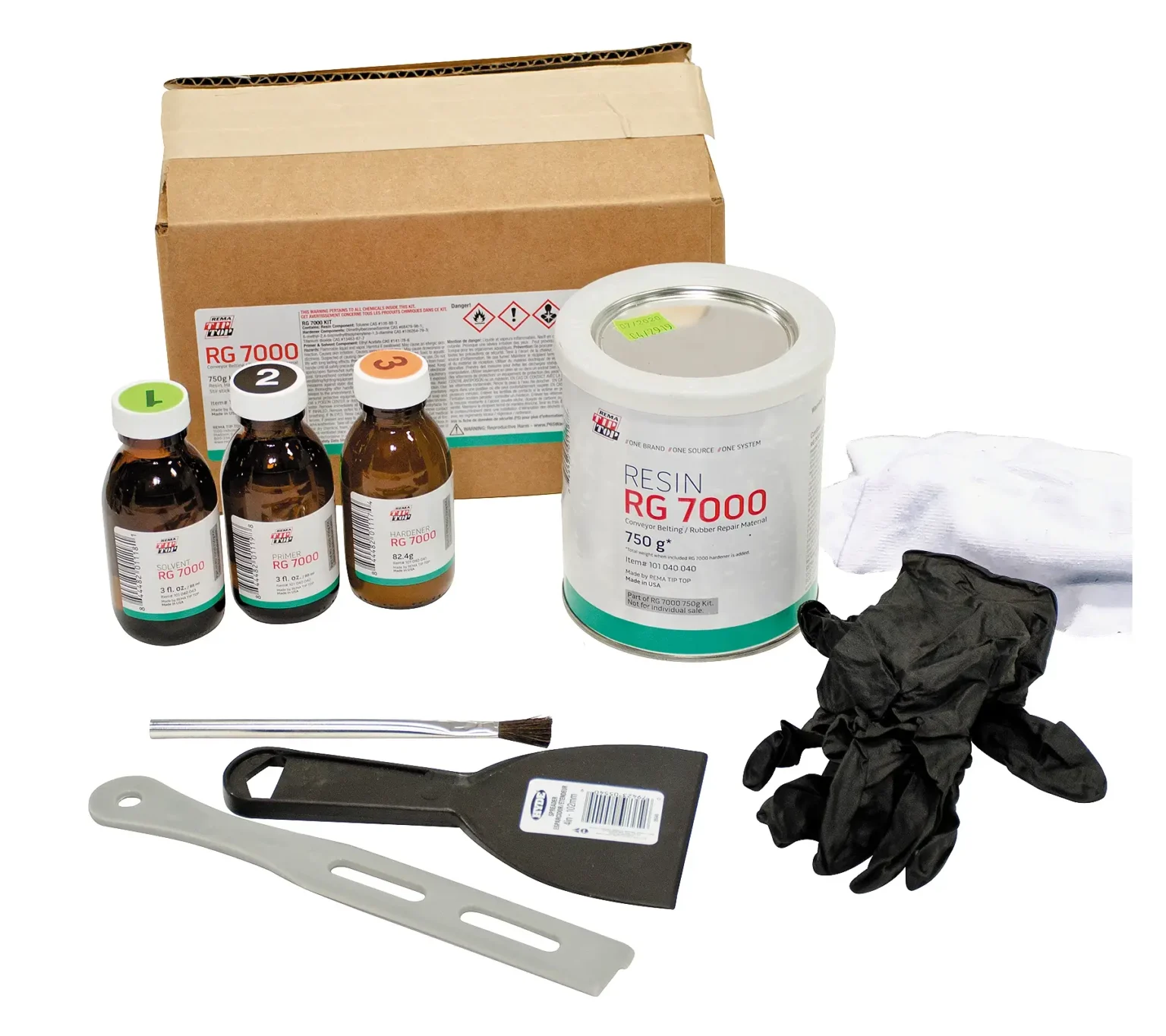

Kit Contents:
- Resin, Solvent, Primer, Hardener
- Stir Stick, Gloves, Brush, Spatula, Rag
Characteristics:
- Can be buffed after 1 hour
- Can be put back in operation after 1 hour
- Self leveling on horizontal surfaces
- Flexible to allow movement with rubber substrate
- Pot time of 2-3 mins minimizes need to work material for extended period of time
Typical Applications:
- Conveyor belt repairs
- Rubber lining repairs
| Technical Properties | |
| Hardness | 85 ± 5 Shore A |
| Tensile | 4135 psi |
| Elongation | 525% |
| 100% Modulus | 1438 psi |
| 300% Modulus | 1945 psi |
| Adhesion @ 7 days | Rubber fails prior to adhesion failure |
| Abrasion Resistance | 117.6 mg lost @ 1000 revs |
| Tear Resistance | 502 ppi |
| Coverage | 750g - 144 sq inches (12" x 12") at 1/4" deep. 300g - 56 sq inches (8" x 7") at 1/4" deep. |
| Storage | Store at room temperature. RG 7000 will turn to gel when stored in temperatures below 32°F; to correct, place in room temperature environment and allow to come back to temperature gradually. |
| Temperature | Not for high heat applications Reduction of physical properties begins to occur at 212°F Moderate oil & solvent resistance No loss of physical properties when exposed to water under 150°F |
| Available Sizes | Item #101040054 (300g kit); Item #101040044 (750g kit) |
RG 7000 Conveyor Belt Repair Material | Application Instructions
RG 7000 Conveyor Belt Repair Material | Application Instructions

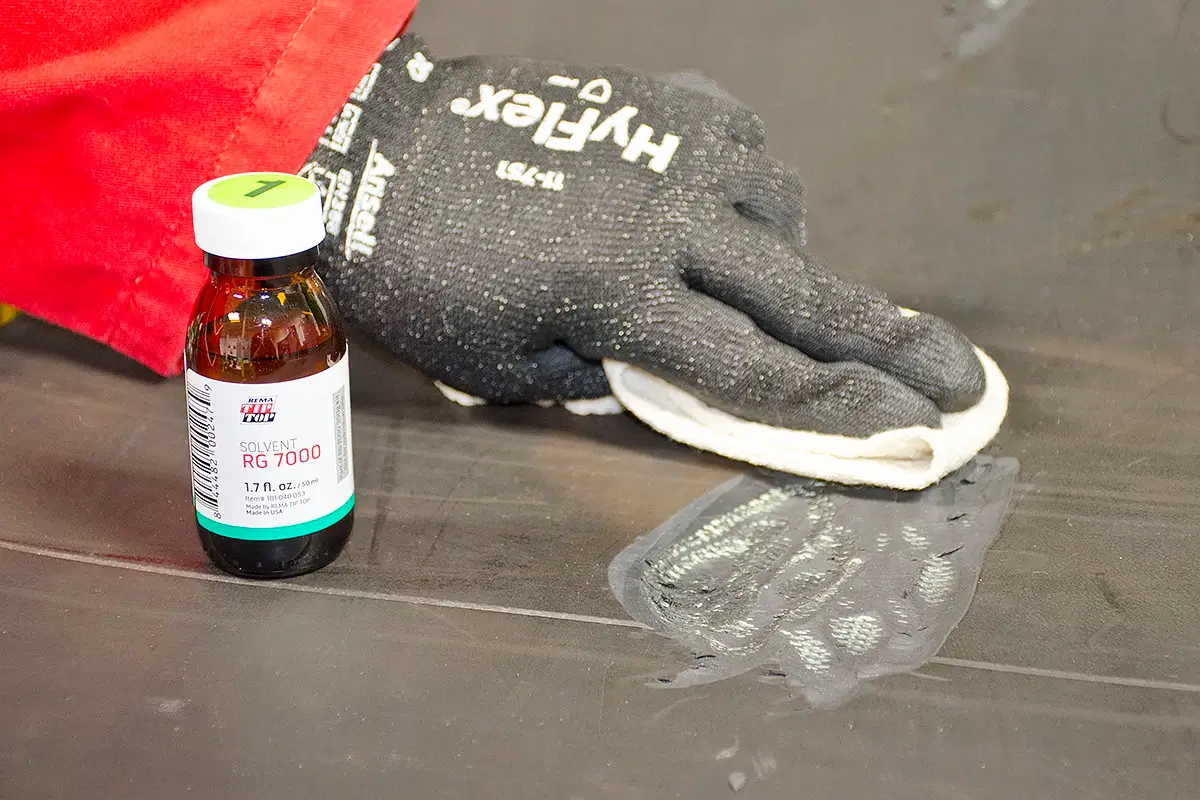

2. Liberally apply RG 7000 cleaning solvent to entire area to be repaired and extending 2″ beyond area, ensuring all contaminants on belt surface are removed. Do not saturate any exposed fabric. Allow solvent to dry.

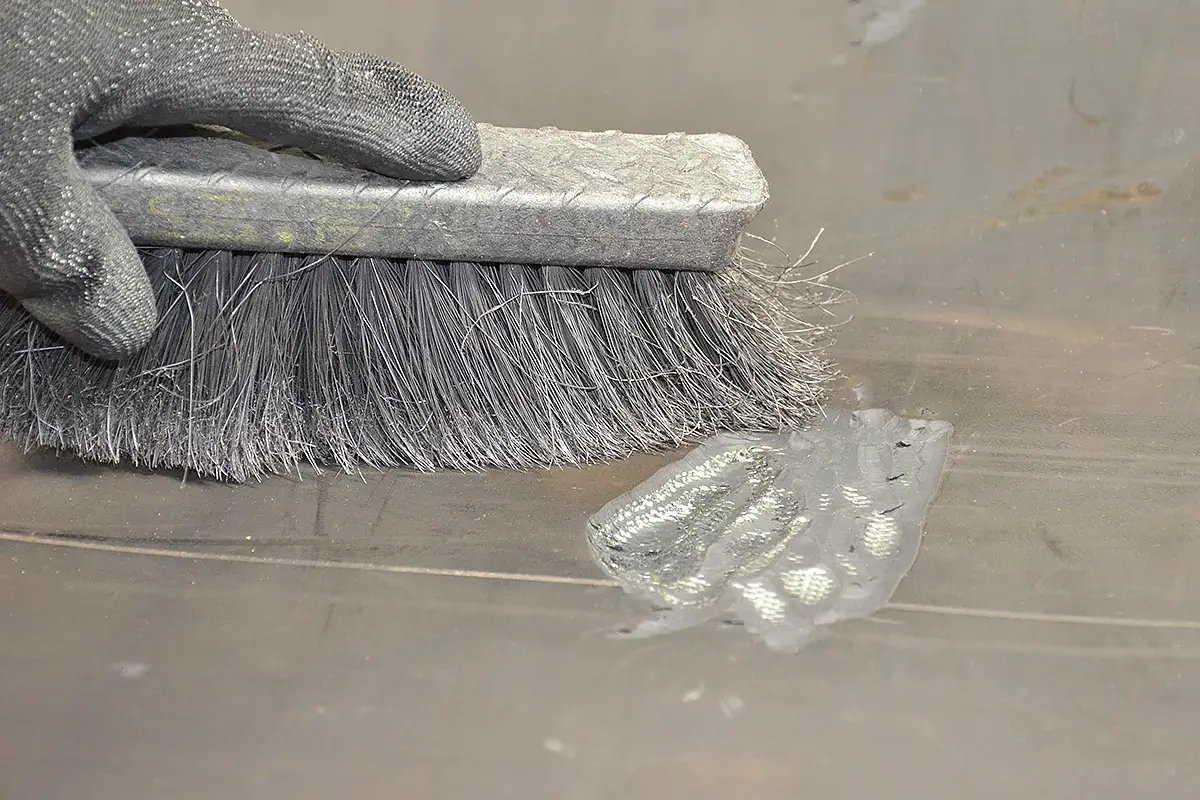

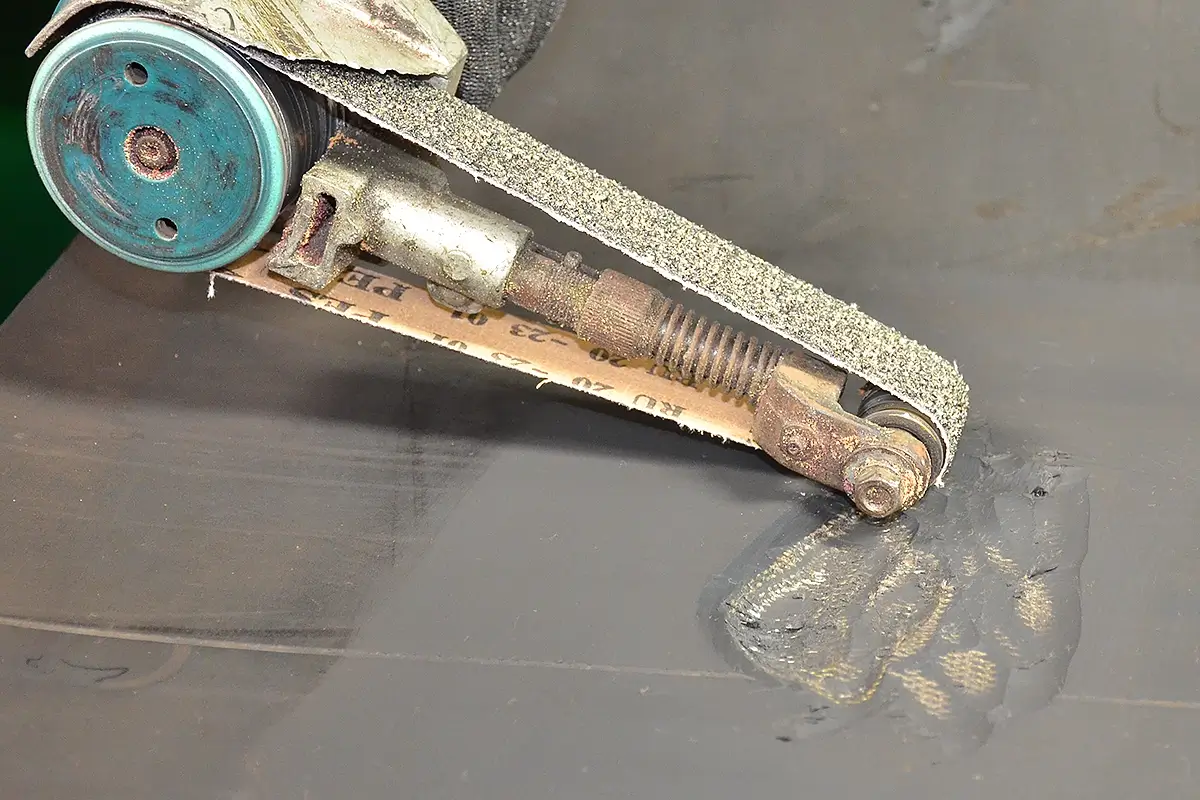

3. Prepare the surface using a buffing tool to achieve a rough profile and remove any loose material. Use the buffing tool at low speed to create a beveled edge around the damaged area.

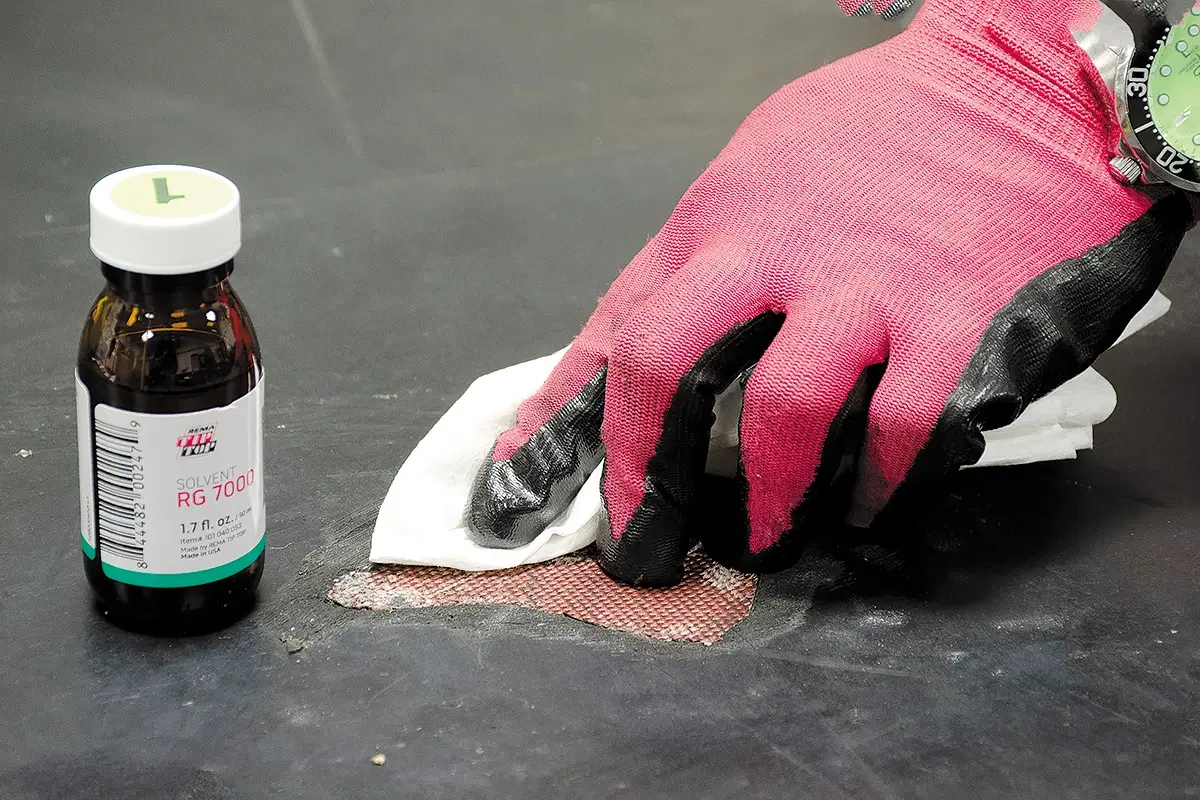

4. Use clean section of cloth to wipe buffing remnants from repair area.

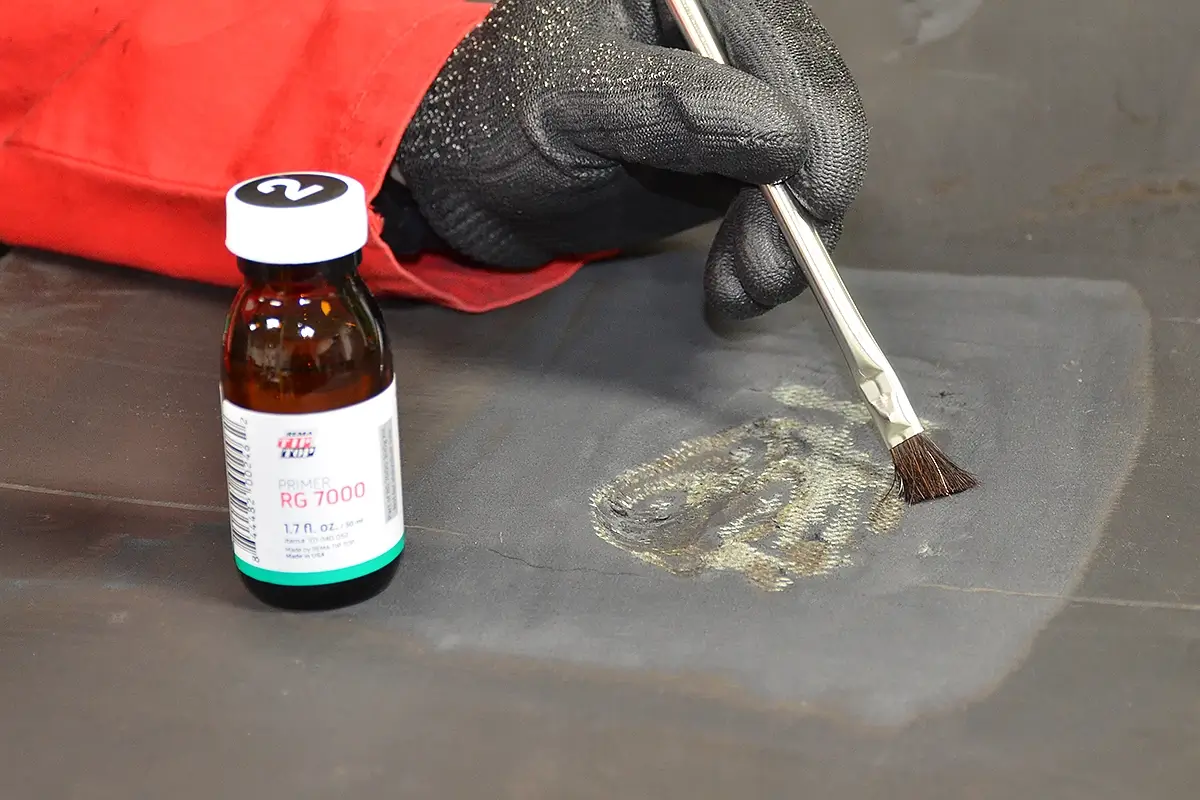

5. Apply RG 7000 Primer to prepared surface, ensure complete coverage of prepared area. Allow primer to evaporate. When RG 7000 is to be used on a hole through the conveyor belt, bevel both top and bottom covers around the hole, clean thoroughly as indicated above, and apply RG 7000 primer to prepared area. Then use duct tape to seal bottom of hole before applying RG 7000.

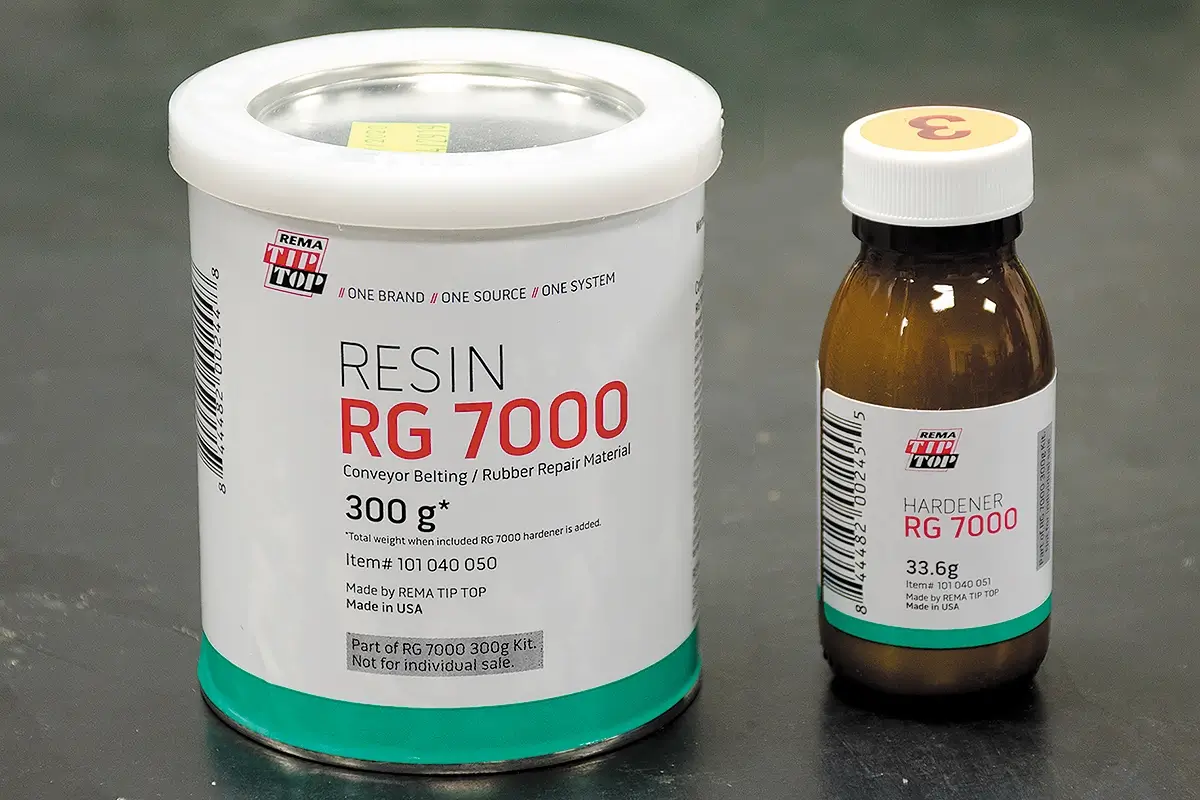

6. Mix RG 7000 by combining the Hardener to the Resin. Stir constantly for approximately 30 seconds. Hardener should be thoroughly blended until entire pot is one solid color.

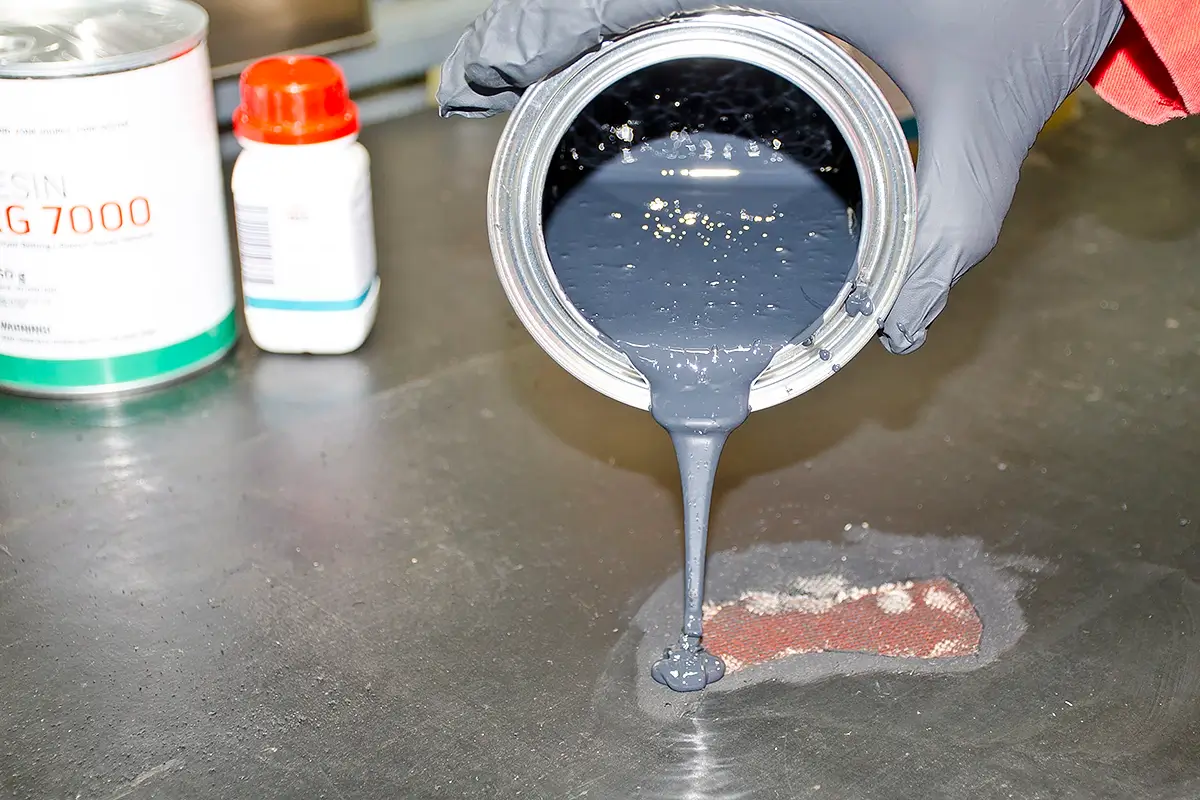

7. After completing the mixing, RG 7000 is pourable for 1-2 minutes.* To ensure the best adhesions, RG 7000 should be poured onto the belt immediately after mixing.
*Times will vary depending on temperature and humidity.

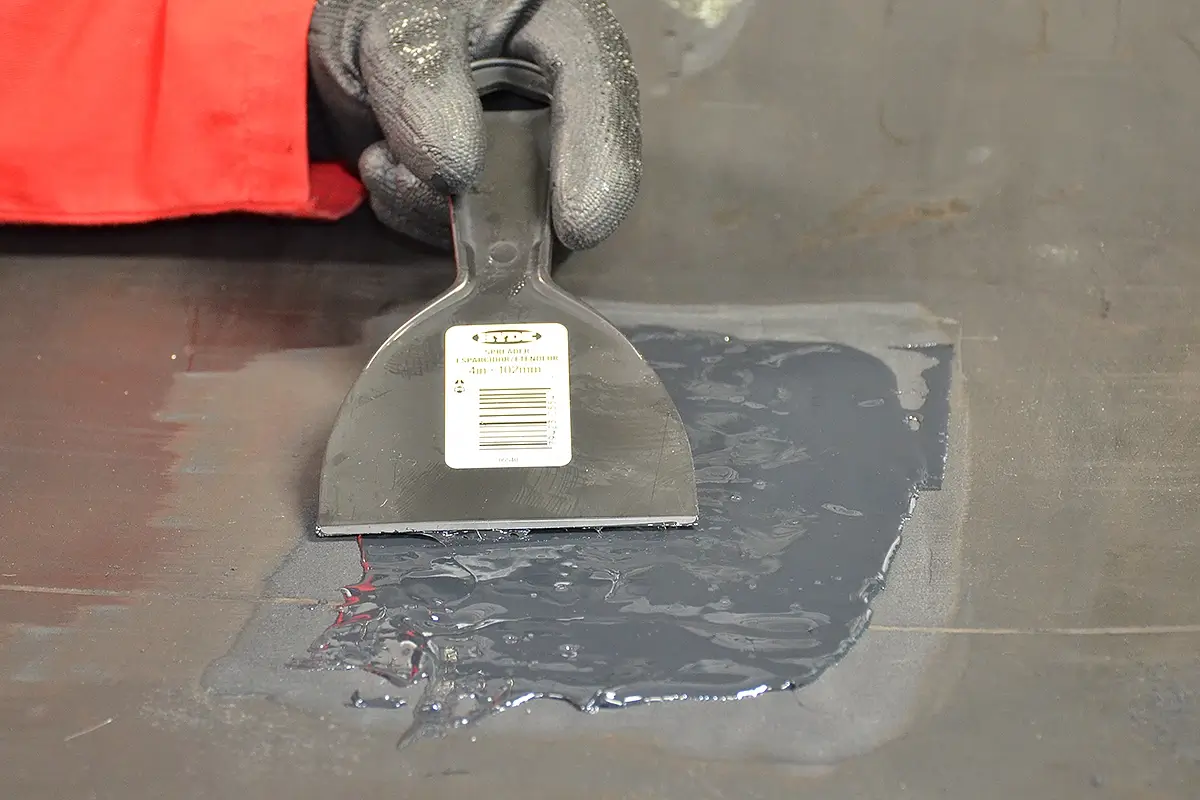

8. If belt is on an on incline, continue to work RG 7000 until thick enough that it doesn’t sag, about 2-4 mins after mixing completed.

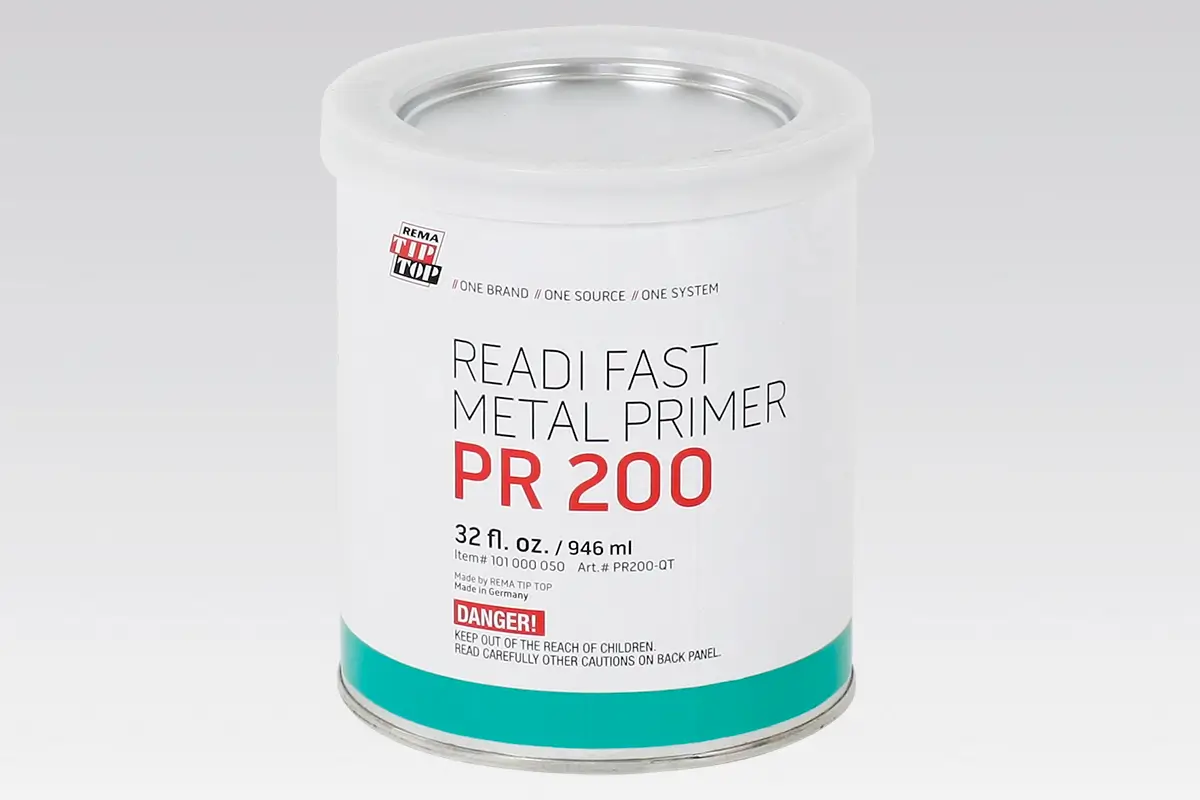

9. If applying over metal fasteners; grind metal fasteners to achieve a rough profile. Clean with solvent. Apply PR 200 to metal fasteners, allow to dry. Apply RG 7000 primer, allow to dry, pour on RG 7000.
Do not mix RG 7000 until you are ready to pour over fasteners.
10. RG 7000 should be left completely undisturbed for the first hour after application. Equipment may be placed back in operation after 1 hour.* Physical properties continue to develop during first 24 hours.
*Times will vary depending on temperature and humidity.

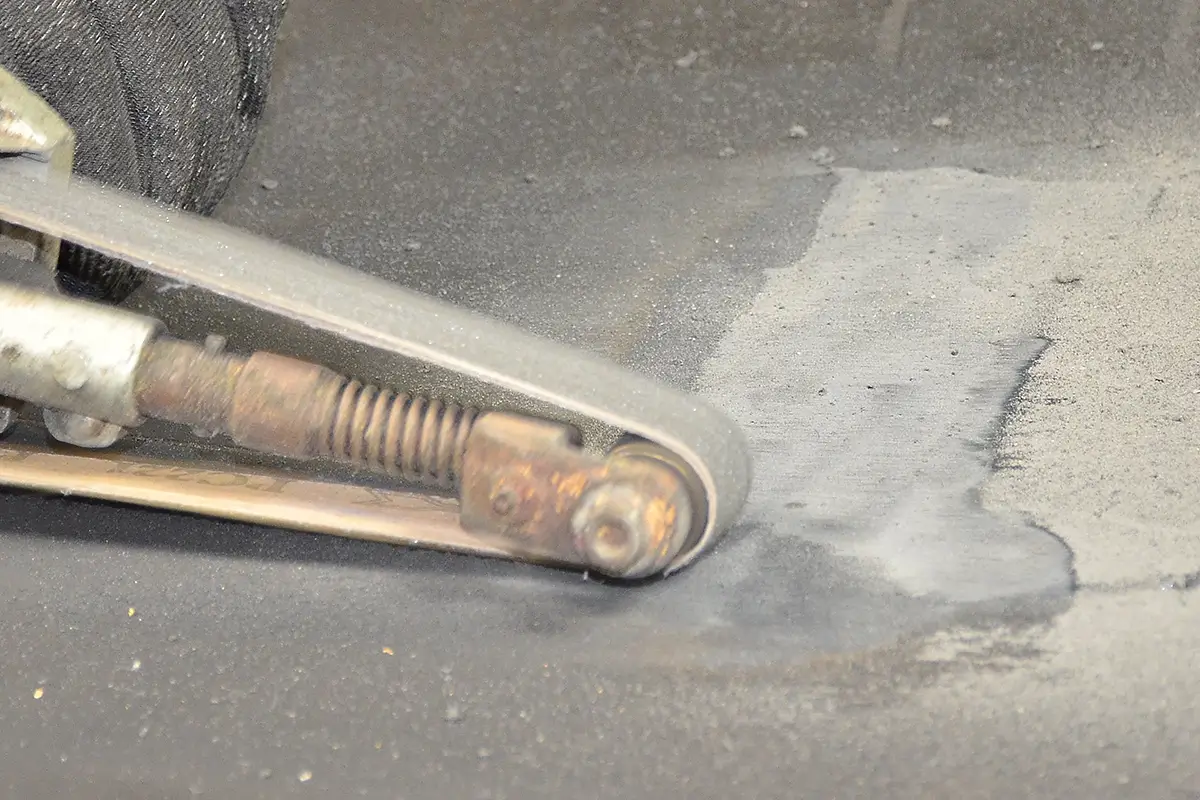

11. If desired, RG 7000 may be buffed at low speed to create a smooth surface 1 hour after application.*
*Times will vary depending on temperature and humidity.
